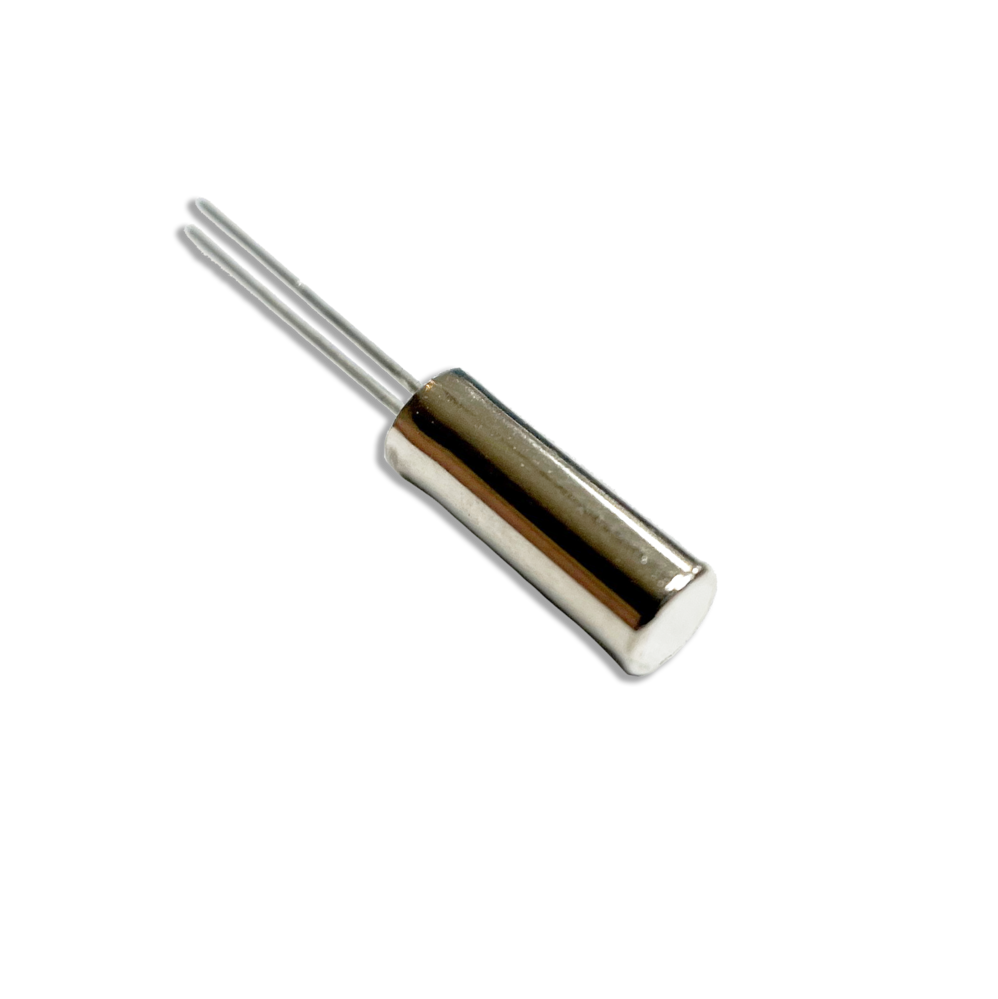

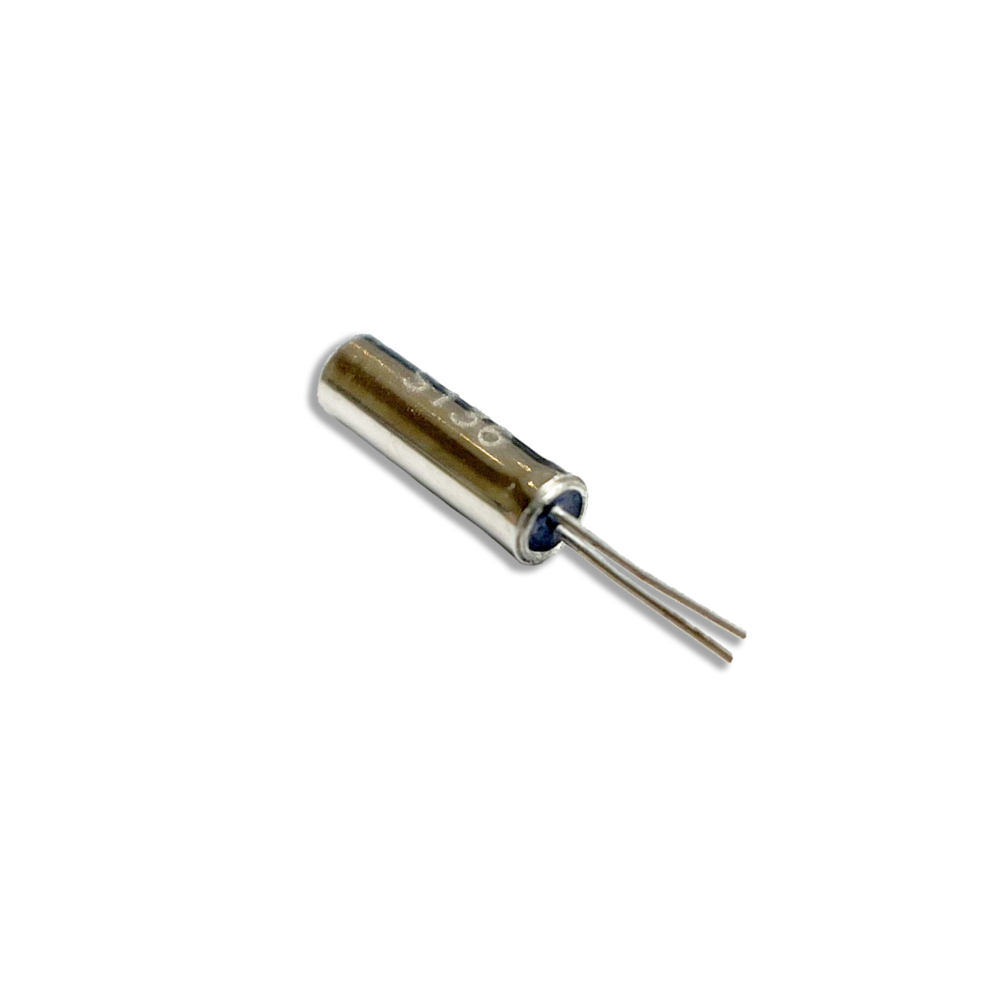

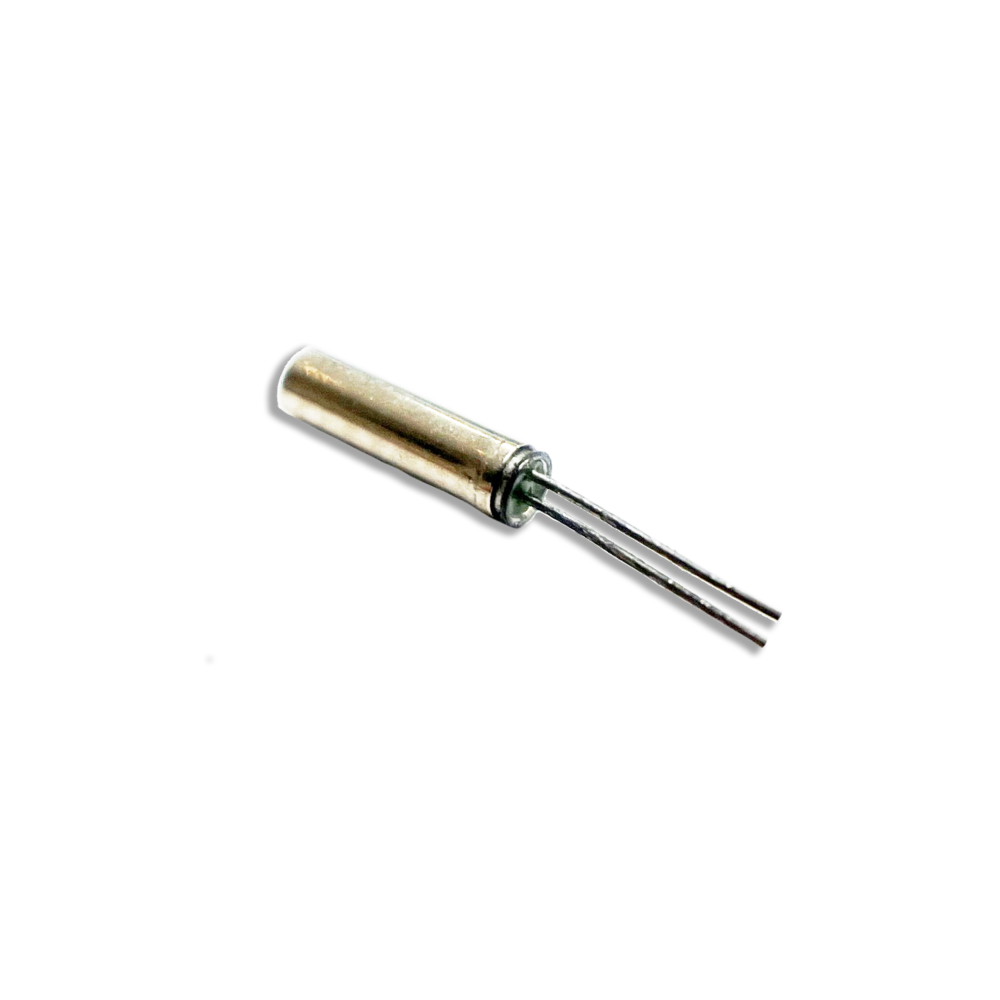

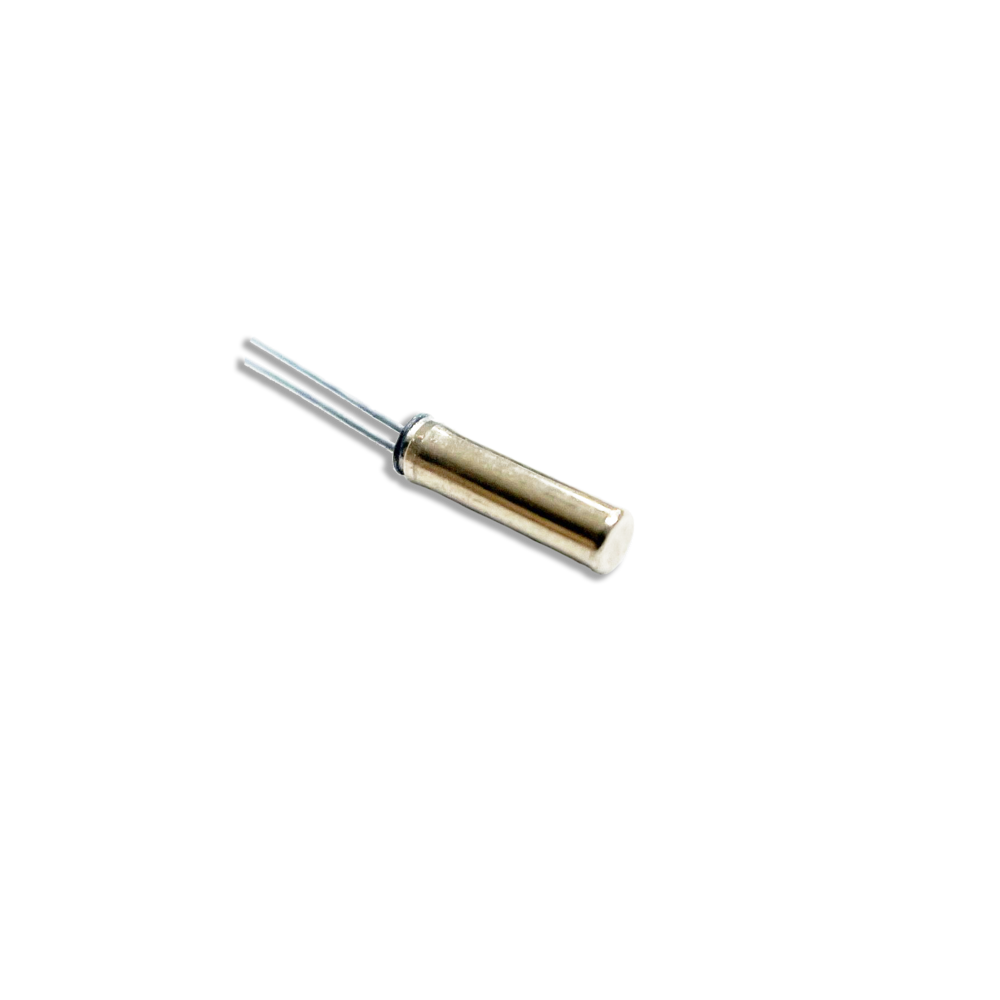

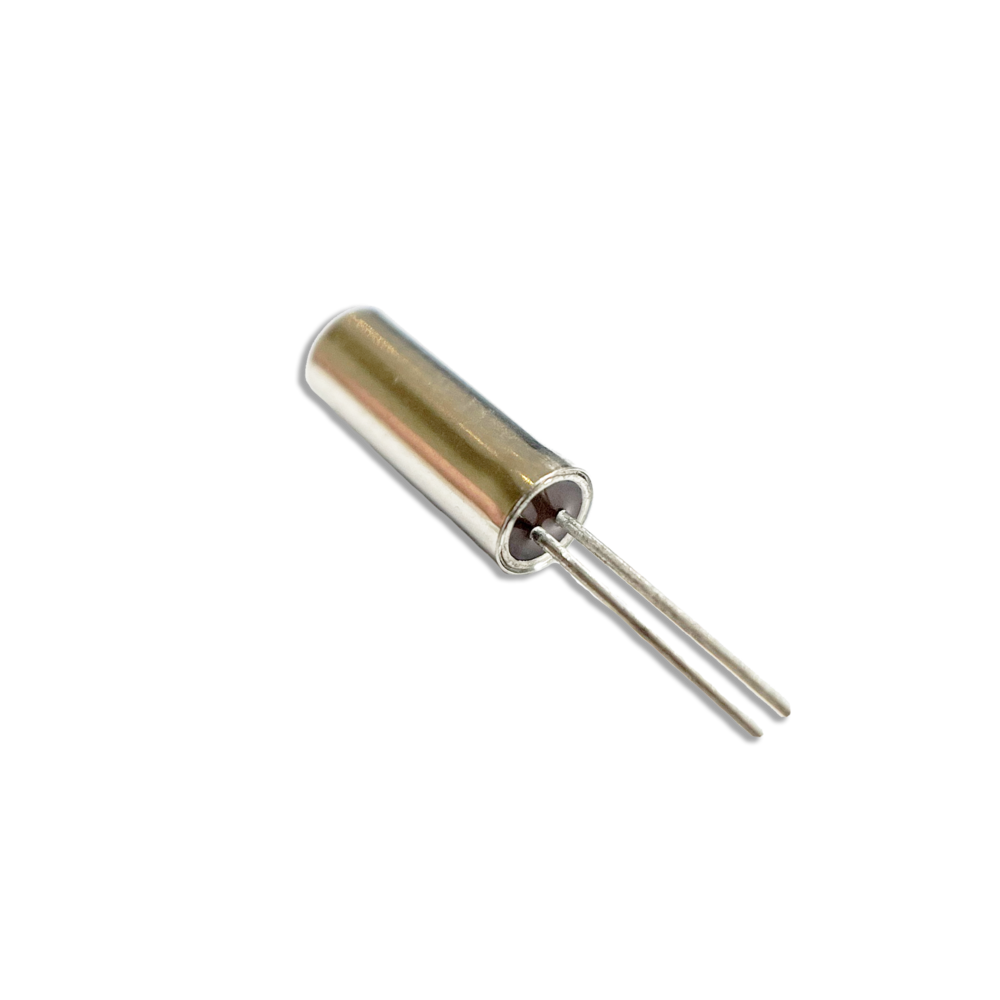

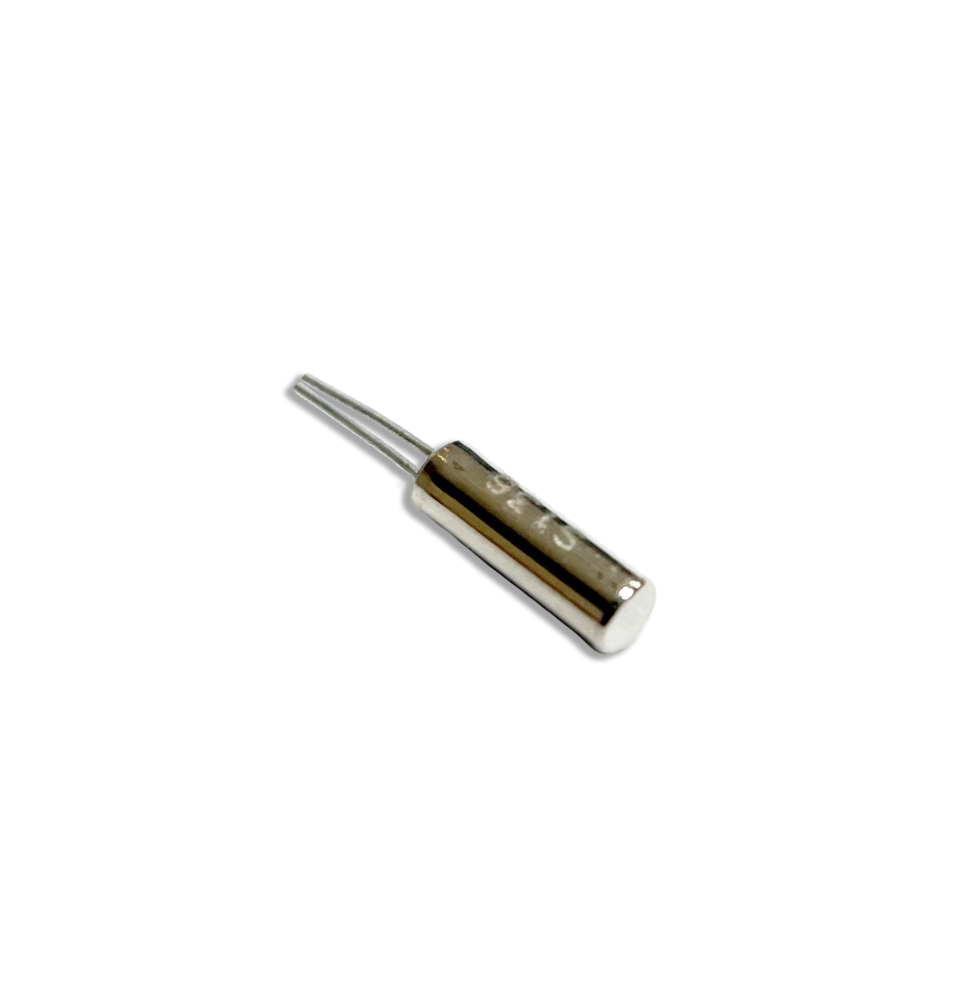

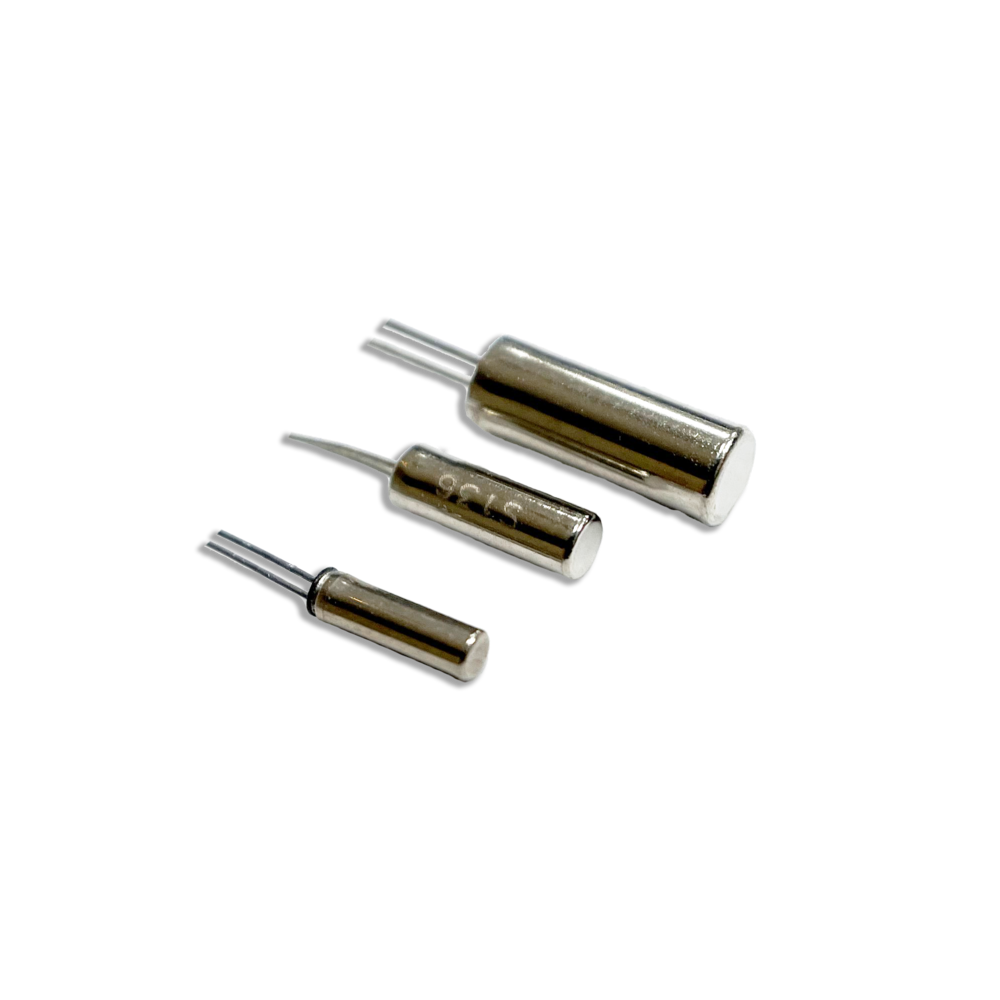

kHz Cylinder Dip Crystal AGX-T38, AGX-T26, AGX-T15
|
Model
|
AGX-T38
|
AGX-T26
|
AGX-T15
|
|
Frequency Range
|
30~200 KHz
|
|
Frequency Tolerance at 25 °C
|
± 20 ppm or 100 ppm
|
|
Shunt Capacitance (C0)
|
1.8 pF (Typ.)
|
1.5 pF (Typ.)
|
1.2 pF (Typ.)
|
|
Load Capacitance (CL)
|
12.5 pF (Typical)
|
|
Operating Temperature Range
|
-10 to +70°C
|
|
Storage Temperature Range
|
-40 to +85°C
|
|
Drive Level
|
1.0μW Max.
|
|
Shock Resistance
|
±5ppm Max.
|
|
Aging
|
Less than ±3 ppm/year. (At 25±5°C)
|
Euqivalent Series Resistance (ESR)
|
Mode
|
Frequency
|
ESR
|
|
AGX-T15
|
32.768 kHz
|
50 KΩ Max.
|
|
AGX-T26
|
32.768 kHz
|
50 K Ω Max.
|
|
AGX-T38
|
32.768 kHz
|
35 K Ω Max.
|
Dimension:( mm)
|
Mode
|
L1
|
L2
|
D1
|
D2
|
B
|
|
AGX-T15
|
5.9±0.2
|
5.0 Max.
|
φ1.5±0.2
|
φ0.18±0.02
|
0.5±0.2
|
|
AGX-T26
|
7.5±0.2
|
6.3 Max.
|
φ2.0±0.2
|
φ0.25±0.02
|
0.7±0.2
|
|
AGX-T38
|
10.0±0.2
|
8.0Max.
|
φ3.0±0.2
|
φ0.32±0.02
|
0.8±0.2
|
|
