AT-CUT MHz SMD Crystal

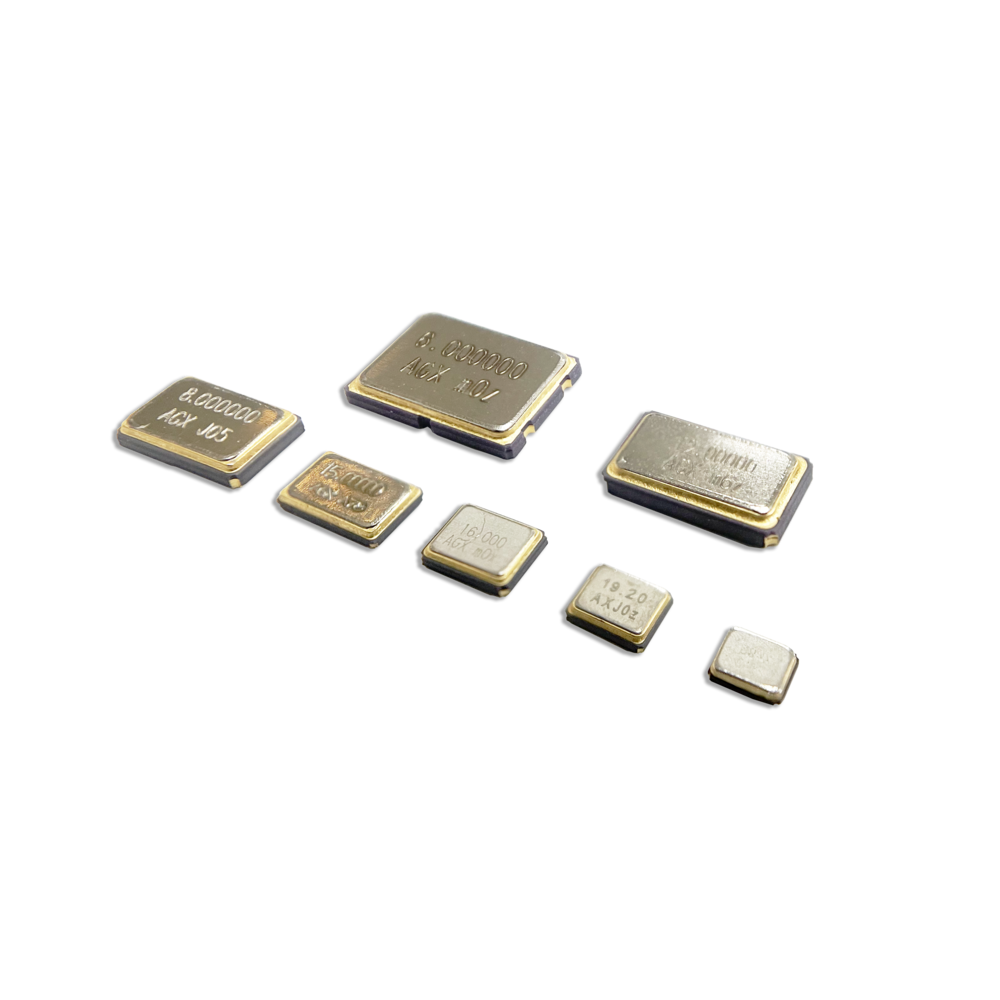

AT-CUT MHz SMD Crystal是当今产业界中最多人使用的,其尺寸最大从7.0*5.0到最小1.6*1.2都可接单生产,尤其近年来产品的小型化趋势更加速了2.0*1.6与1.6*1.2尺寸的普及化,举凡 : 蓝芽耳机、蓝芽手环、手机等穿戴式装置中都可以看到小尺寸的Crystal踪迹;而3.2*2.5含以上的尺寸则会常出现在实体电路板较大的产品中。

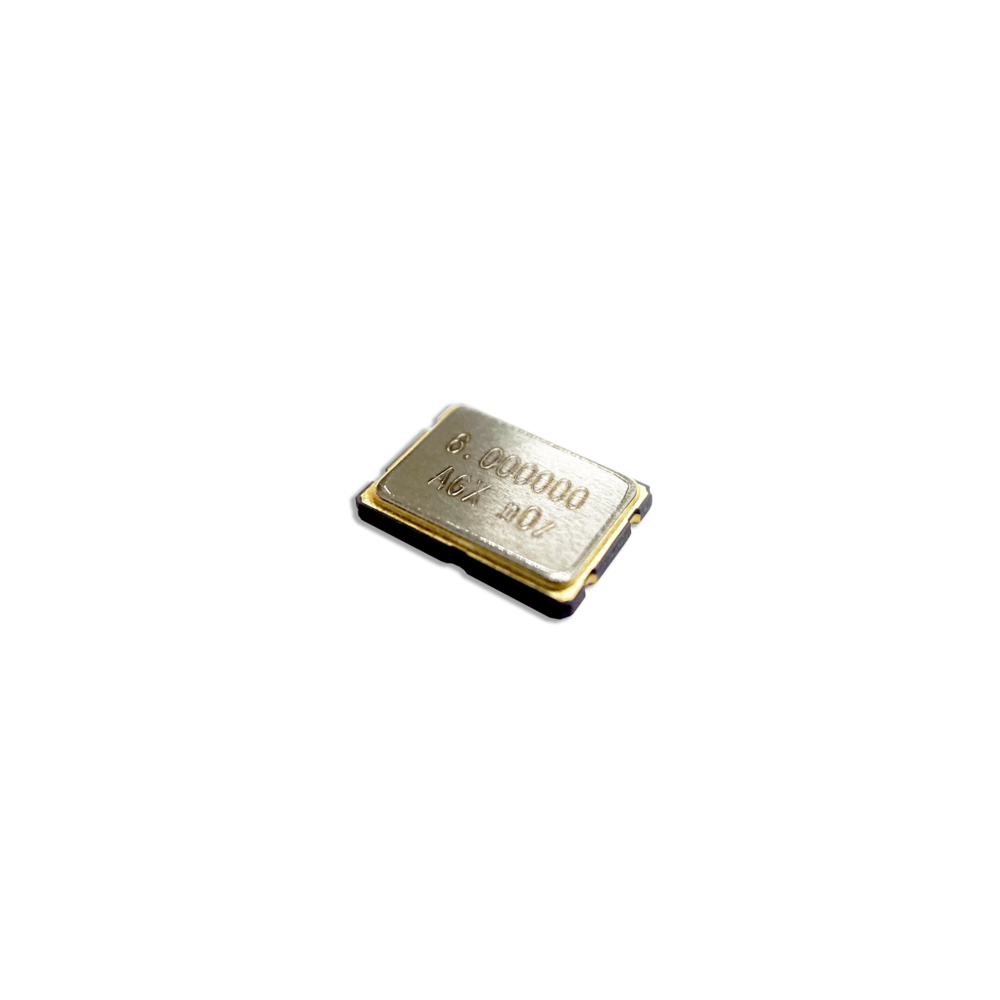

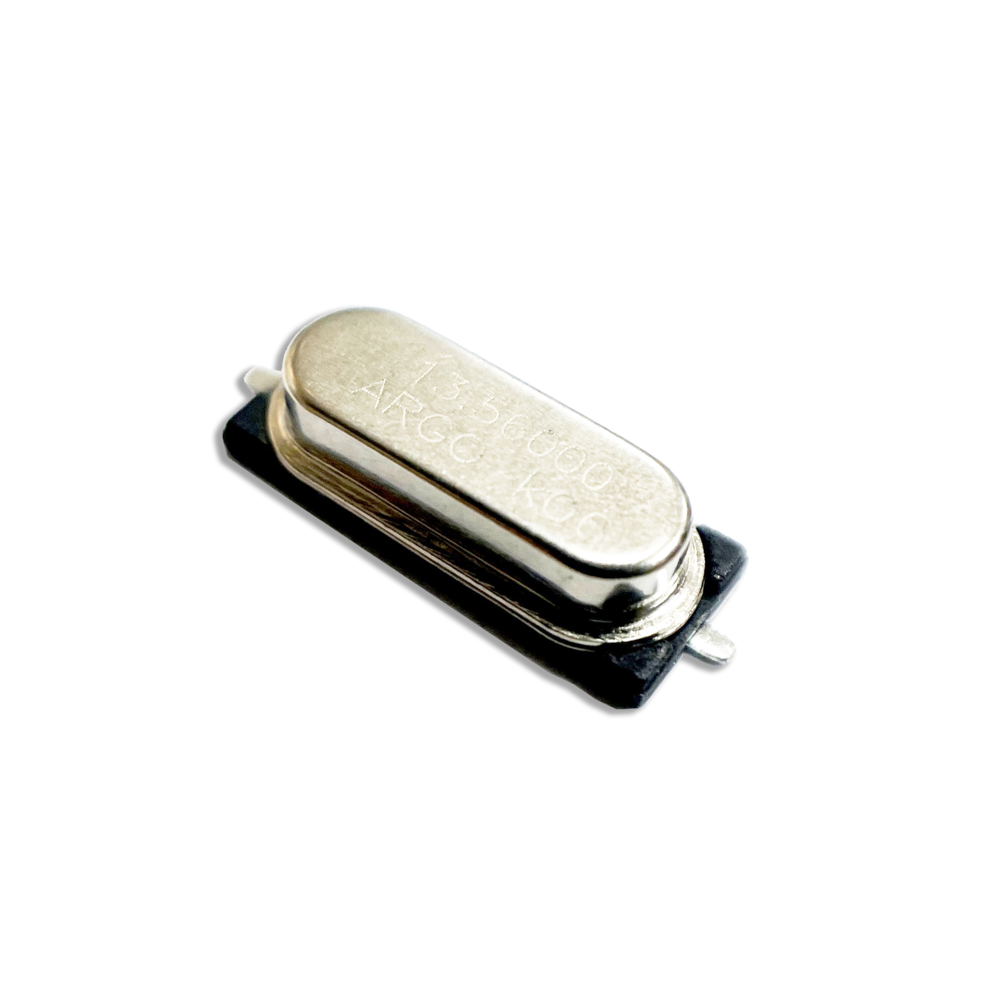

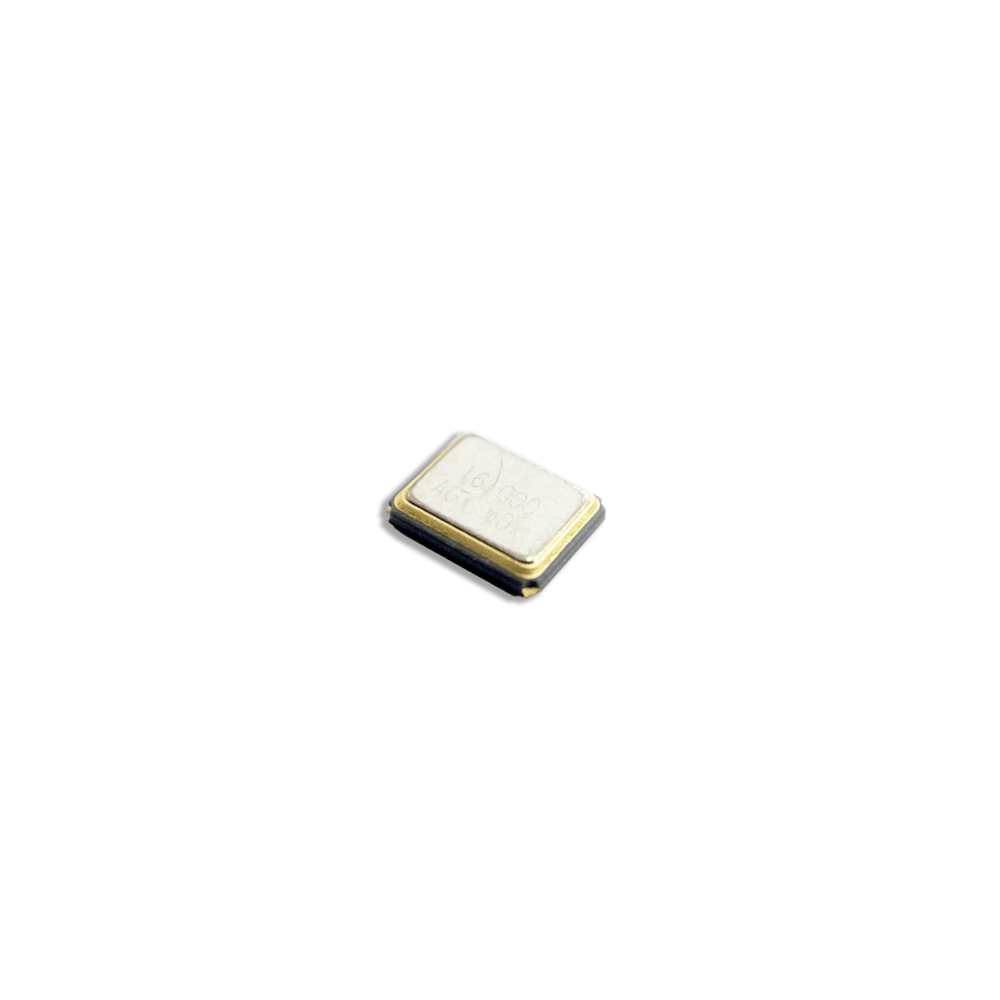

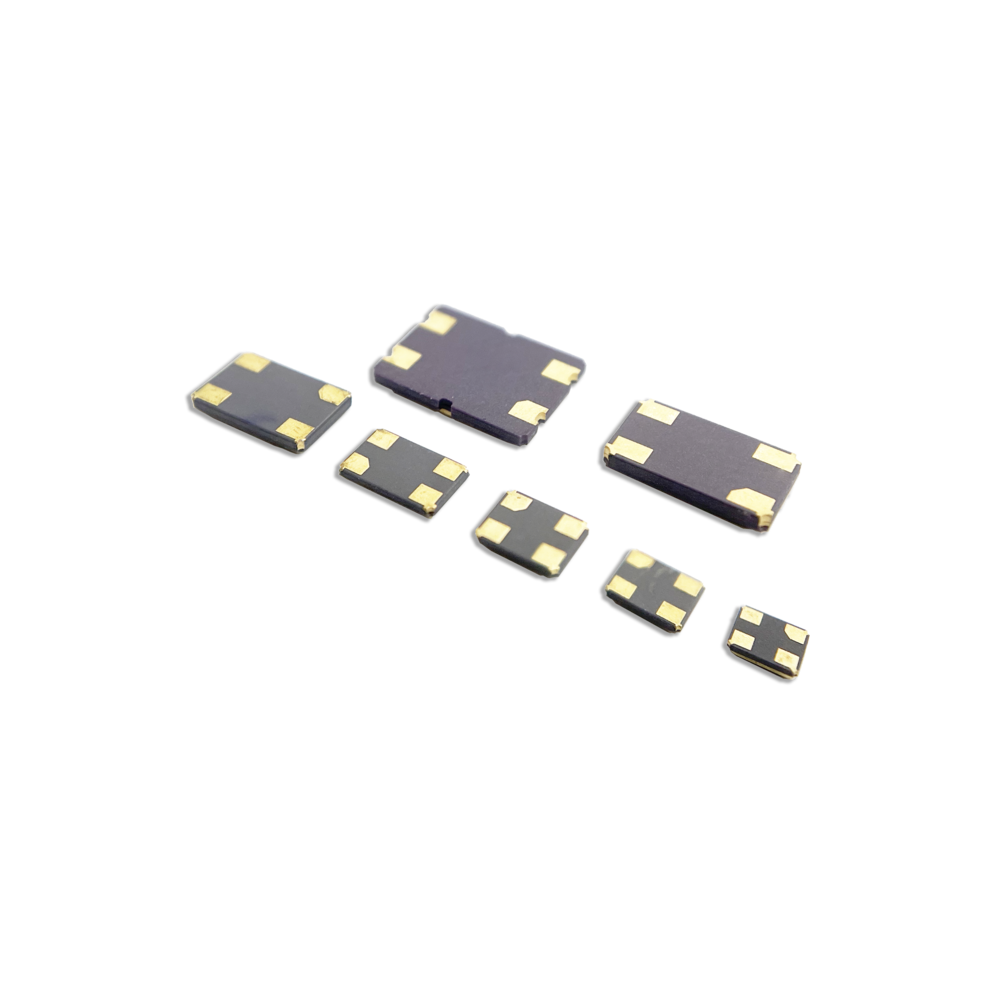

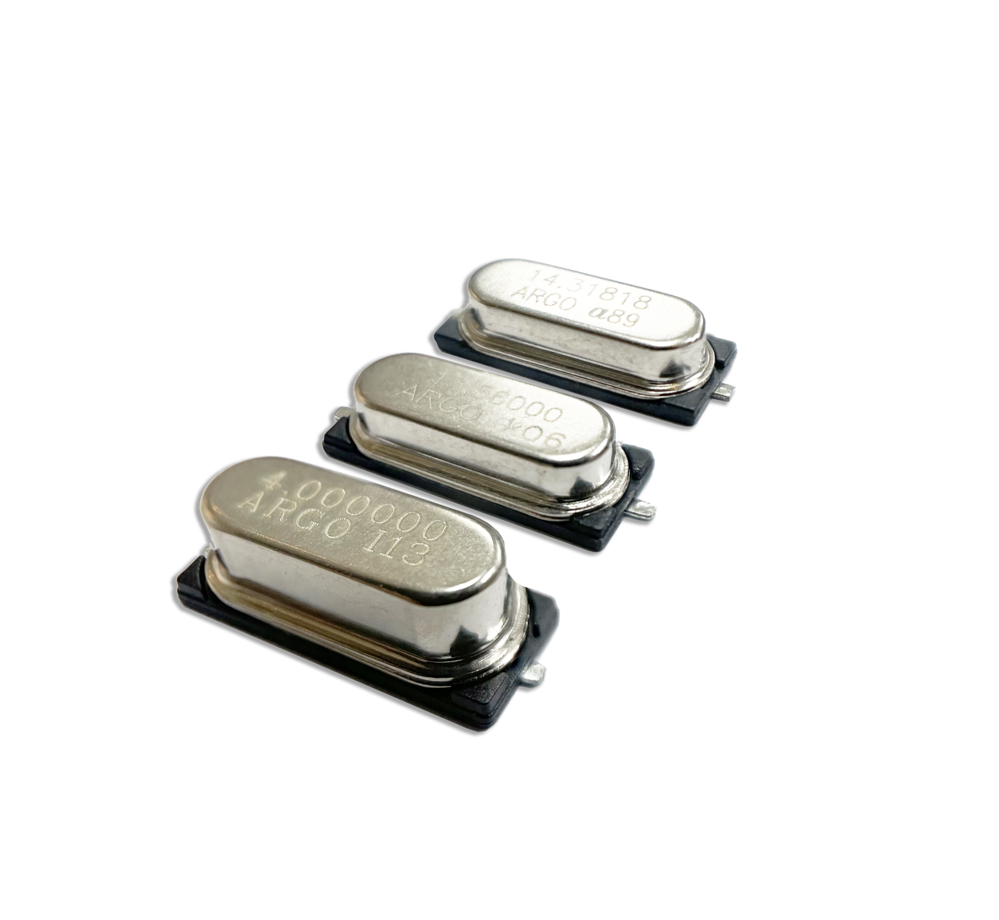

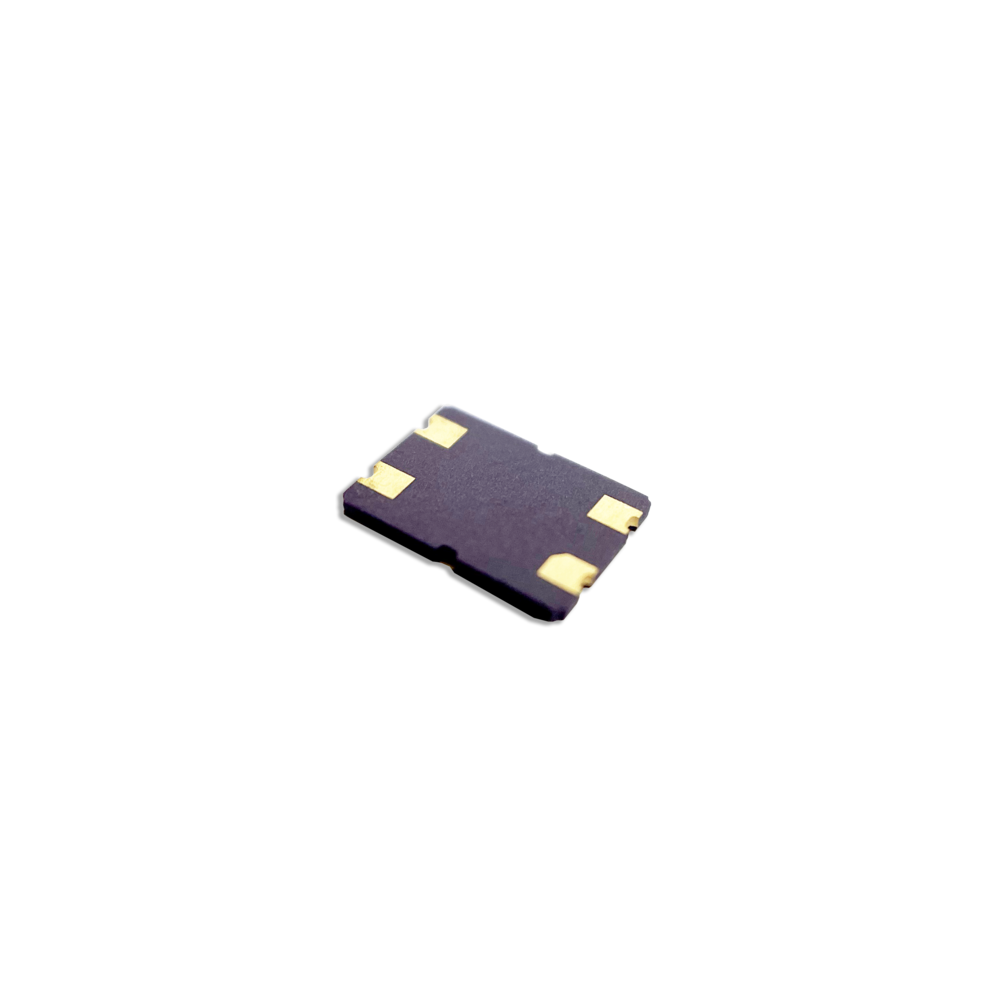

SMD Crystal     AGX-S7050, AGX-S6035, AGX-S5032, AGX-S4025, AGX-S3225, AGX-S2520, AGX-S2016AGX-S49S, AGX-S49SS, AGX-S49S+
Model AGX-S7050、AGX-S6035、AGX-S5032、AGX-S4025、AGX-S3225、
AGX-S2520、AGX-S2016、
GX-S49S、 AGX-S49SS、 AGX-S49S+
Frequency Range (Fundamental) 3.2~50 MHz
Frequency Range (3rd overtone) 12~130 MHz
Frequency Tolerance AT-cut: ±30ppm at 25 ºC
Frequency Stability AT-cut: ±30ppm over -10 ~ +70 ºC
Shunt Capacitance (C0) 7pF Max.
Load Capacitance (CL) 8 pF ~ 32 pF for Series
Drive Level 100µW (Typical)
Operating Temperature Range -10 ~ +70 ºC
Storage Temperature Range -40 ~ +85 ºC
Aging Less than ±3 ppm / year. (At 25±5 ºC )

Equivalent Series Resistance (ESR)
Model Freq. (MHz) Oscillation Mode ESR Max.
AGX-S7050 6.000~9.999 Fundamental 60 Ω
10.000~11.999 Fundamental 50 Ω
12.000~14.999 Fundamental 40 Ω
15.000~40.000 Fundamental 30 Ω
30.000~130.000 3rd Overtone 80 Ω
AGX-S6035 8.000~16.000 Fundamental 80 Ω
16.000~40.000 Fundamental 40 Ω
40.000~67.000 3rd Overtone 70 Ω
67.100~125.000 3rd Overtone 90 Ω
AGX-S5032 8.000~40.000 Fundamental 50 Ω
40.000~125.000 3rd Overtone 60 Ω
AGX-S4025 12.000~15.000 Fundamental 60 Ω
16.000~20.000 Fundamental 40 Ω
21.000~50.000 Fundamental 30 Ω
AGX-S3225 12.000~15.000 Fundamental 100 Ω
16.000~20.900 Fundamental 70 Ω
21.000~29.900 Fundamental 60 Ω
30.000~52.000 Fundamental 50 Ω
12.000~20.900 Fundamental 80 Ω
AGX-S2520 21.000~50.000 Fundamental 60 Ω
24.000~25.000 Fundamental 100 Ω
AGX-S2016 25.000~36.000 Fundamental 80 Ω
36.000~50.000 Fundamental 60 Ω
AGX-S49S
AGX-S49SS
AGX-S49S+
2.200~3.999 Fundamental 150 Ω
4.000~4.999 Fundamental 120 Ω
5.000~5.999 Fundamental 100 Ω
6.000~8.999 Fundamental 80 Ω
9.000~9.999 Fundamental 60 Ω
10.000~12.999 Fundamental 50 Ω
13.000~18.999 Fundamental 40 Ω
19.000~50.000 Fundamental 35 Ω
30.000~44.999 3rd Overtone 80 Ω
45.000~59.999 3rd Overtone 70 Ω
60.000~79.999 3rd Overtone 60 Ω

Dimension: (mm)

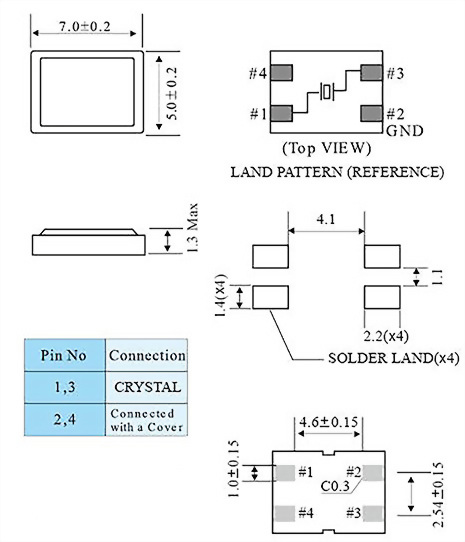

AGX-S7050

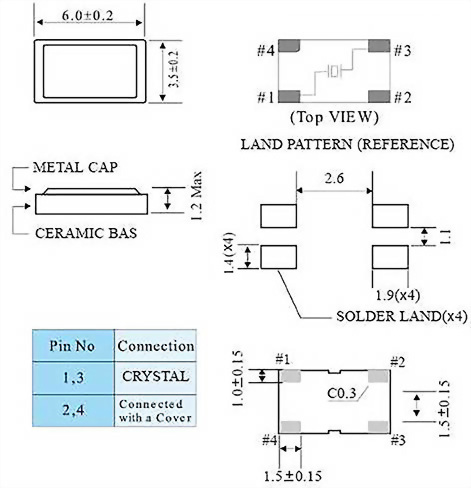

AGX-S6035

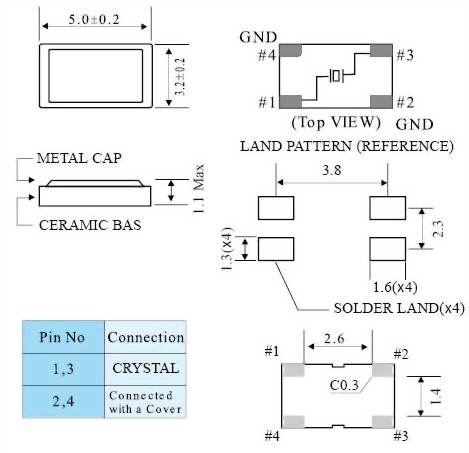

AGX-S5032

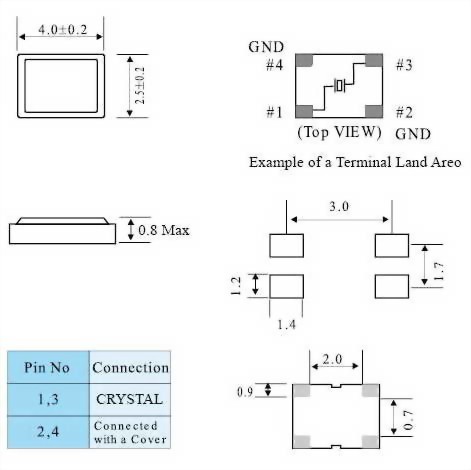

AGX-S4025

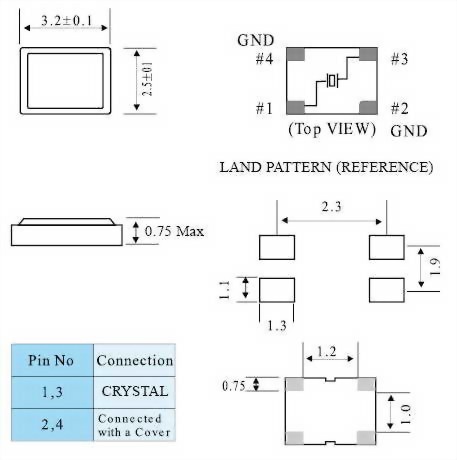

AGX-S3225

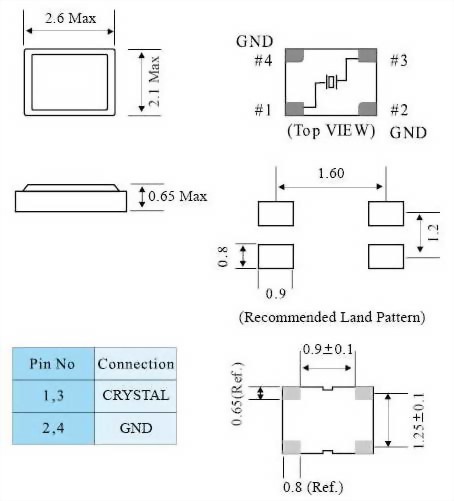

AGX-S2520

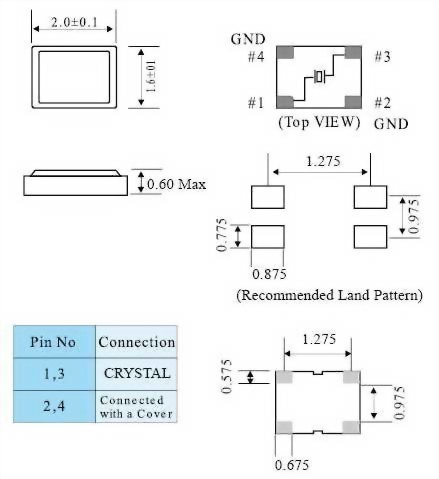

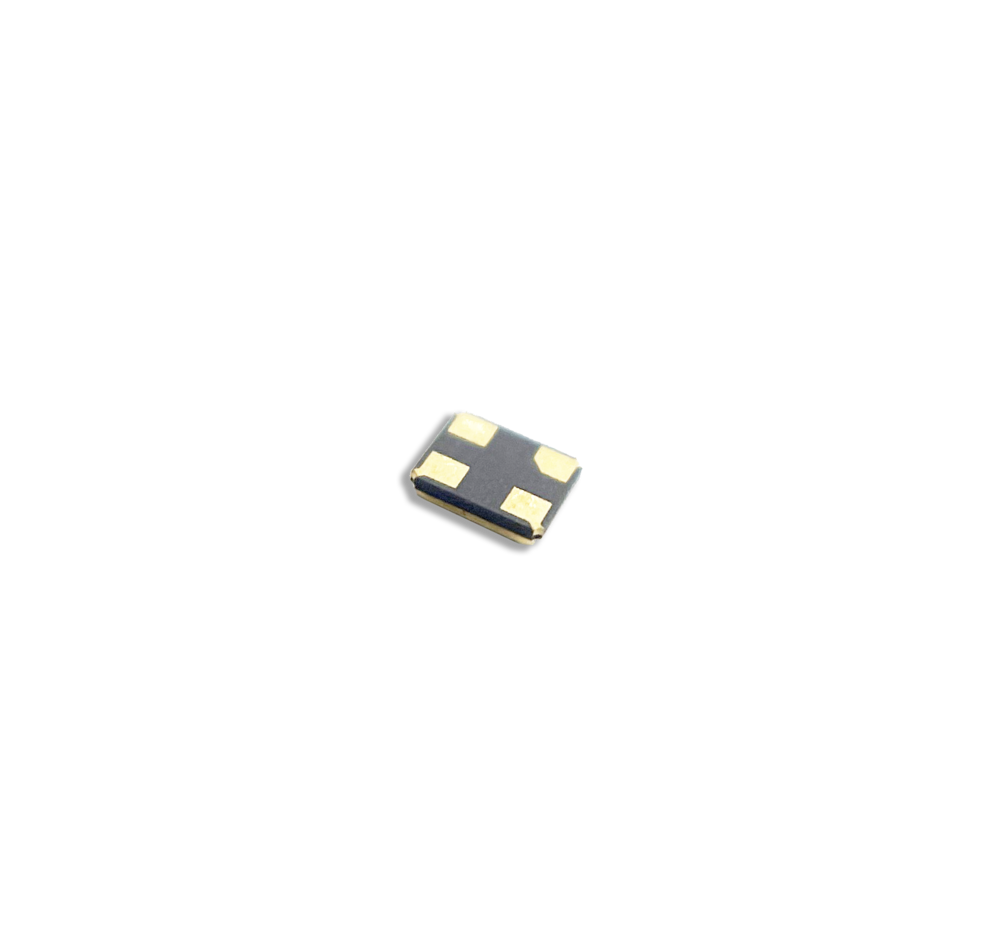

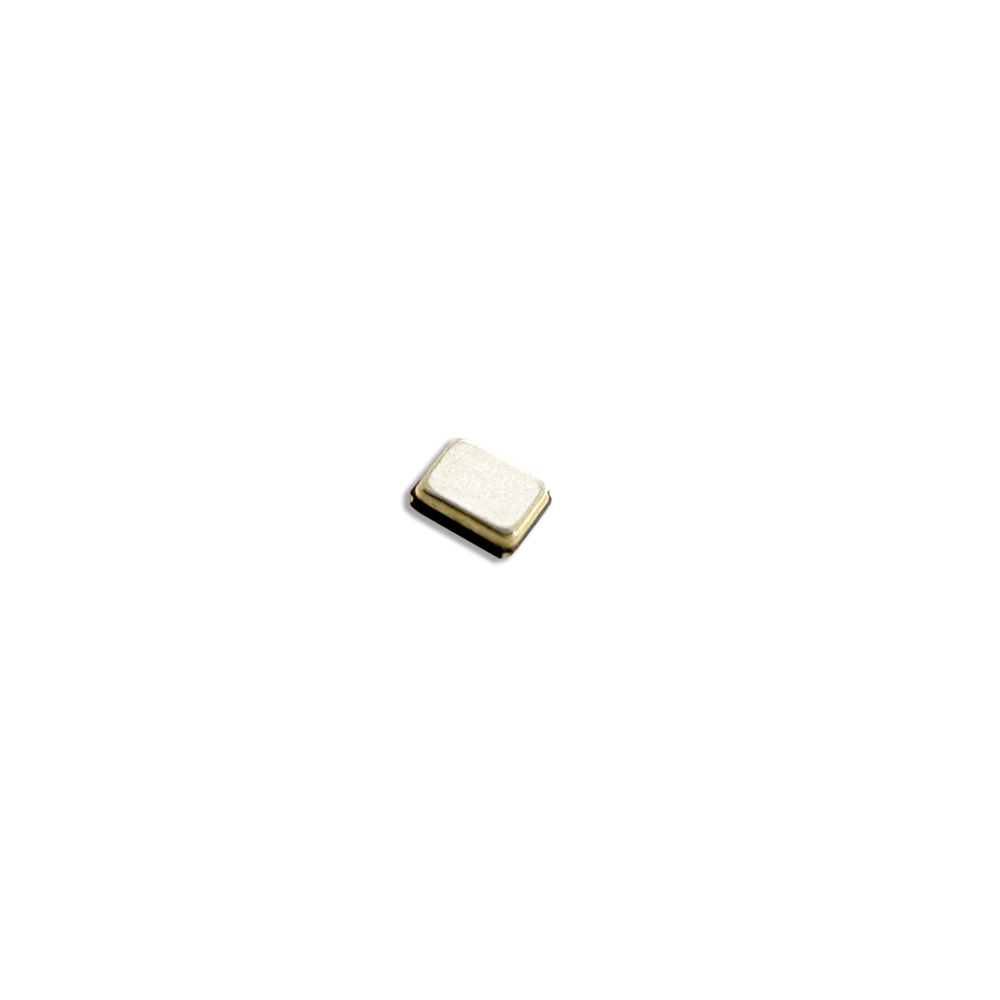

AGX-S2016

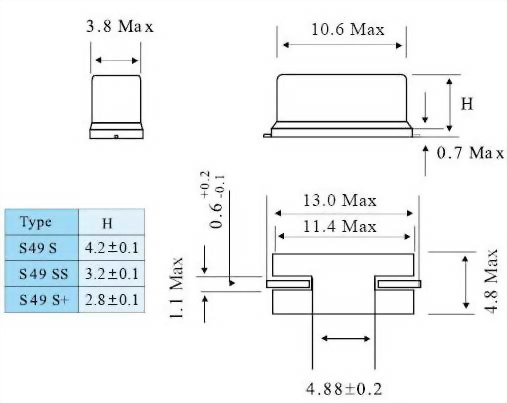

AGX-S49S, AGX-S49SS, AGX-S49S+
