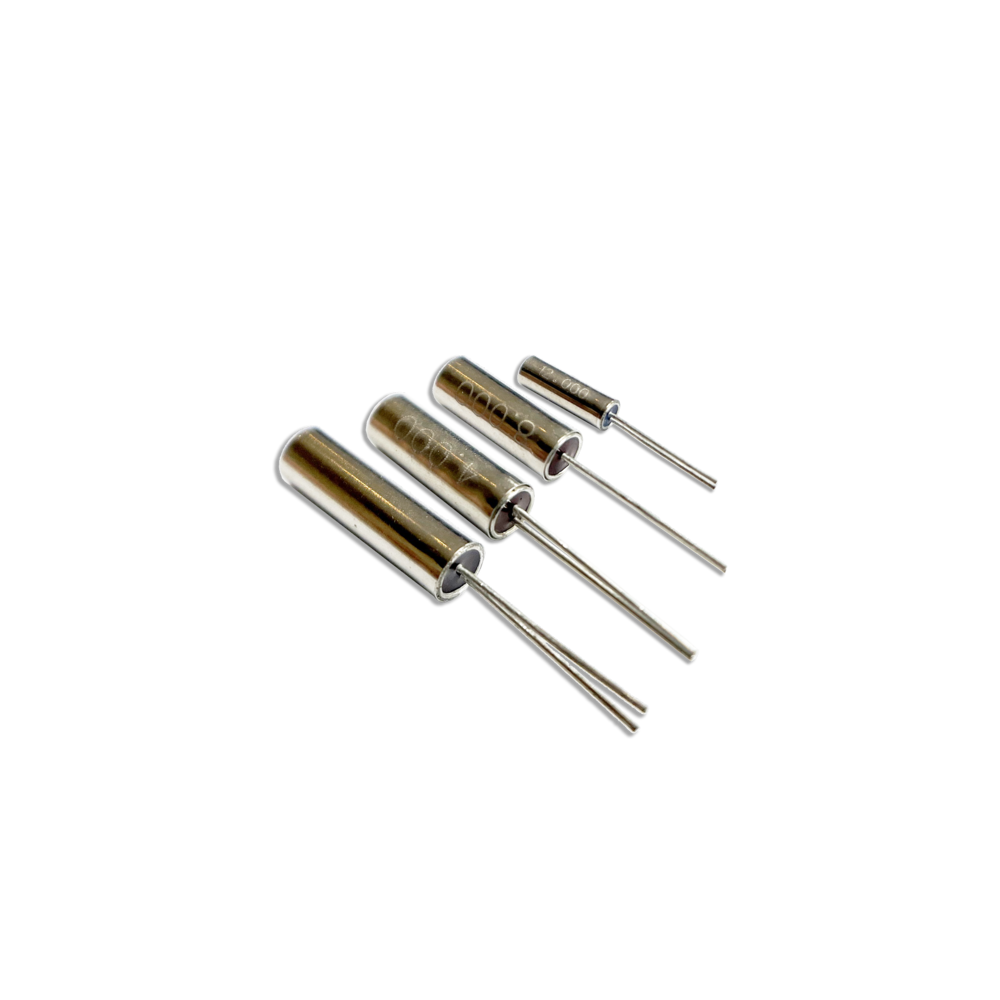

Cylinder MHz DIP Crystal是最早问世的Crystal产品其中之一，在早期芯片技术没这么发达的时候，这类产品已是当时MHz频率元件最精准的；现在圆柱型MHz DIP Crystal几乎都被AT-CUT Crystal取代，已鲜少出现在实体电路上，但若有早期机种尚未停产、改版，我们仍可供应该类产品。

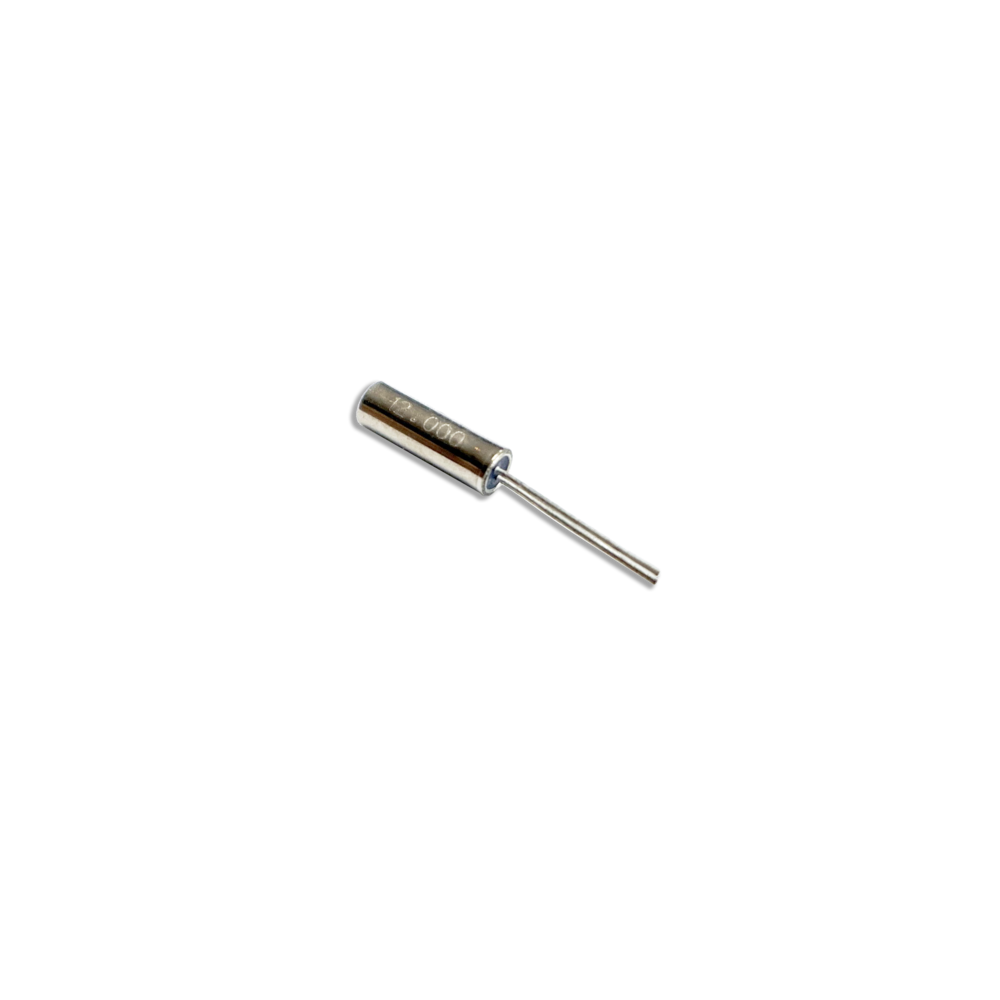

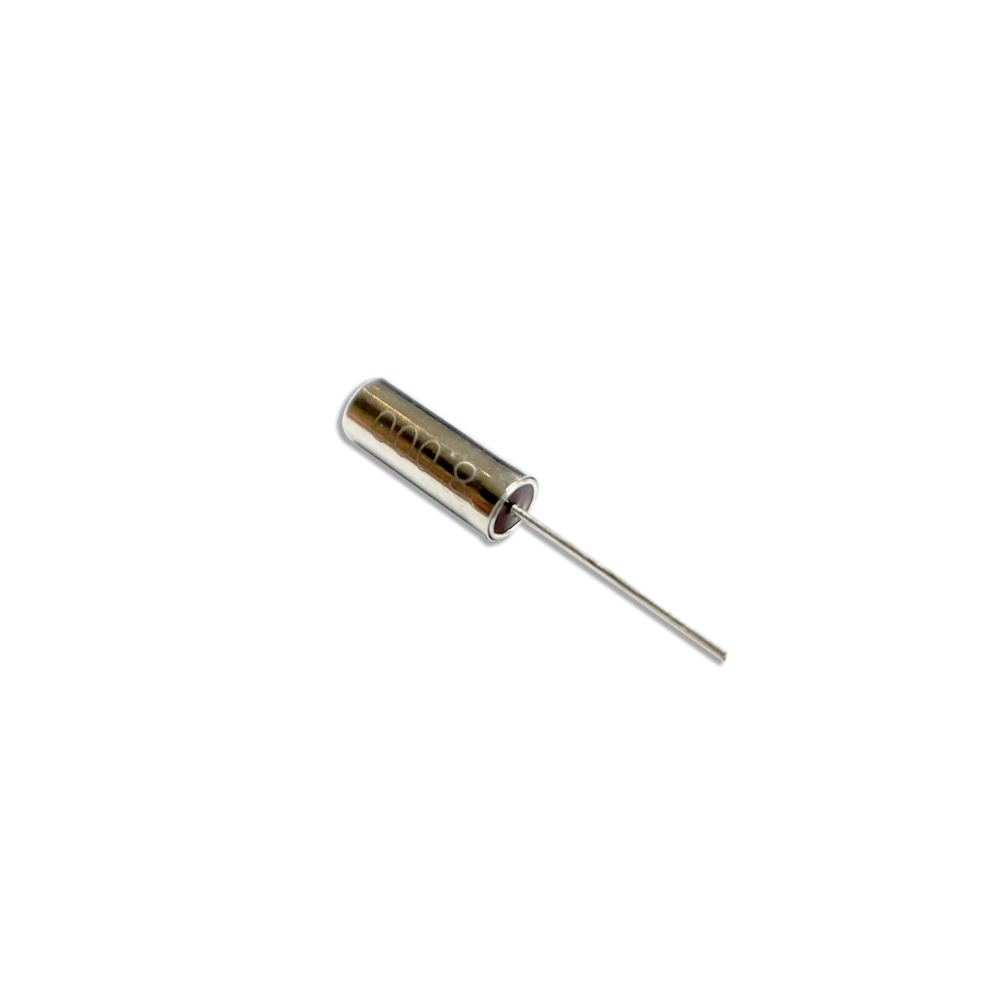

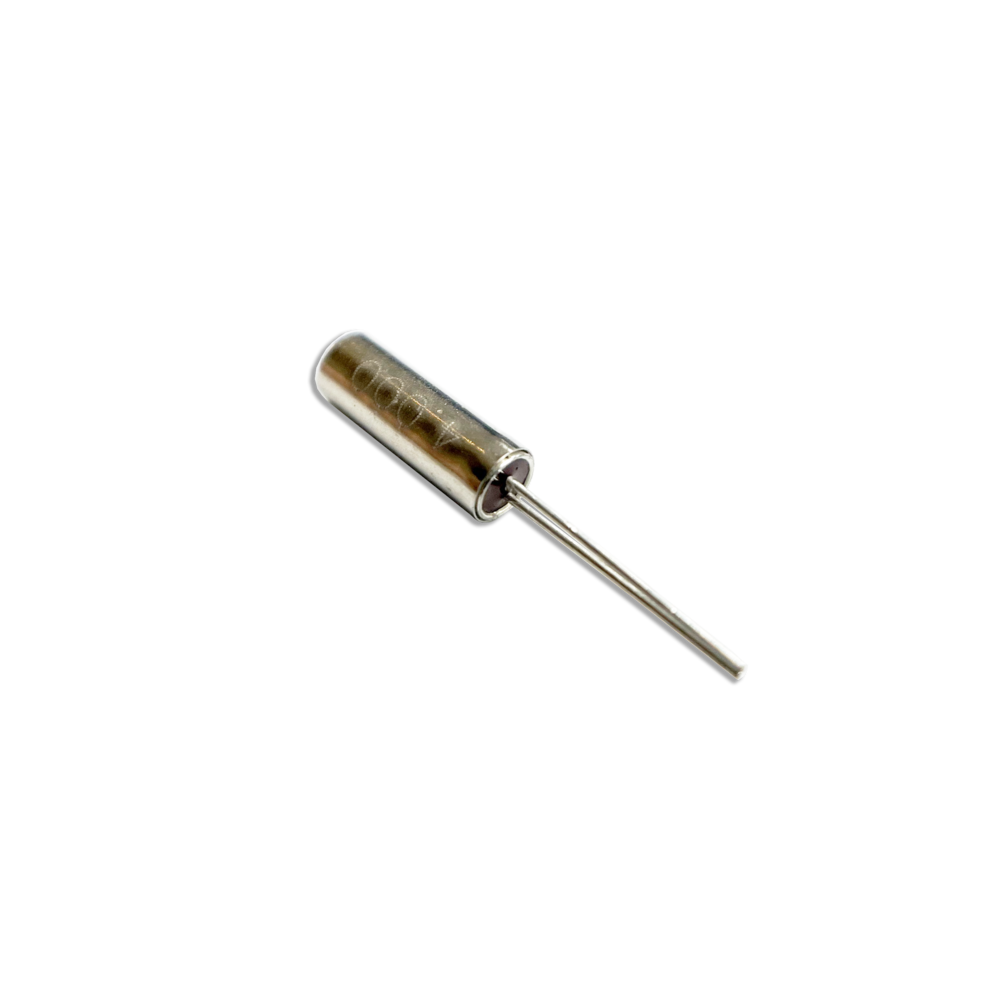

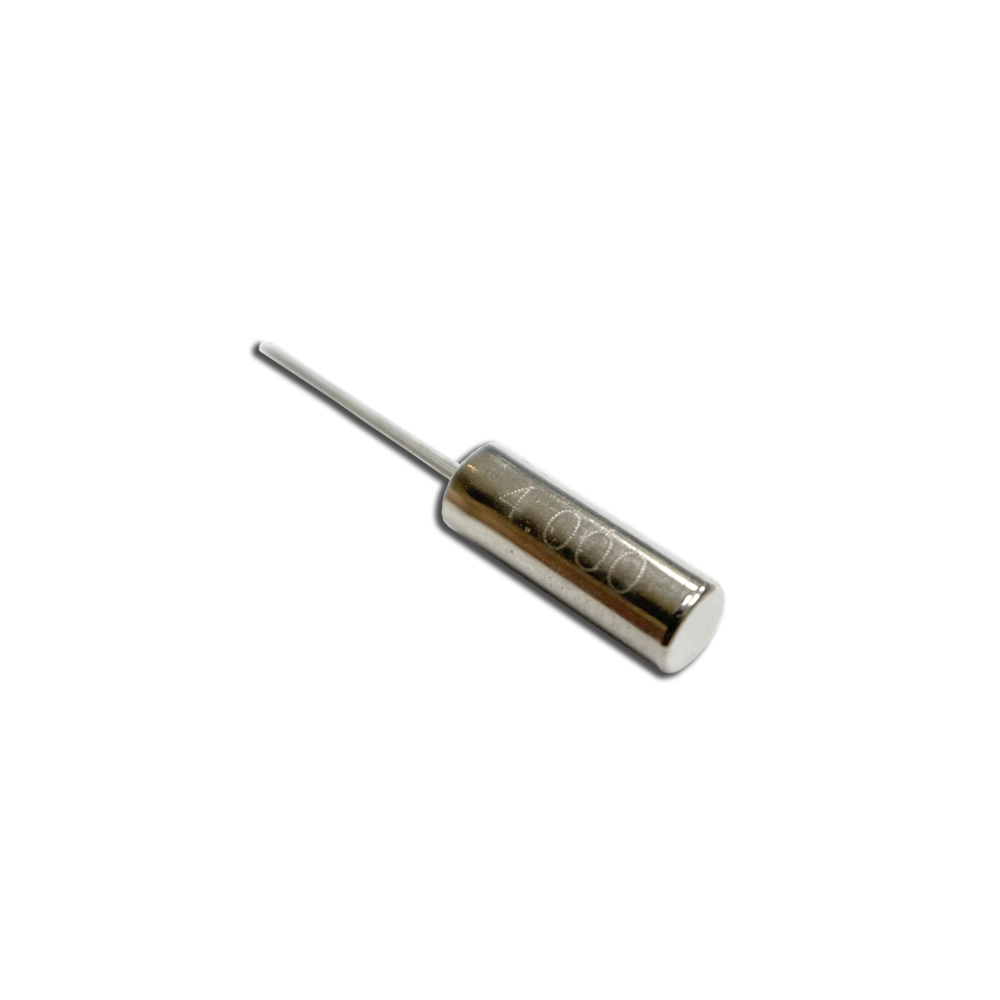

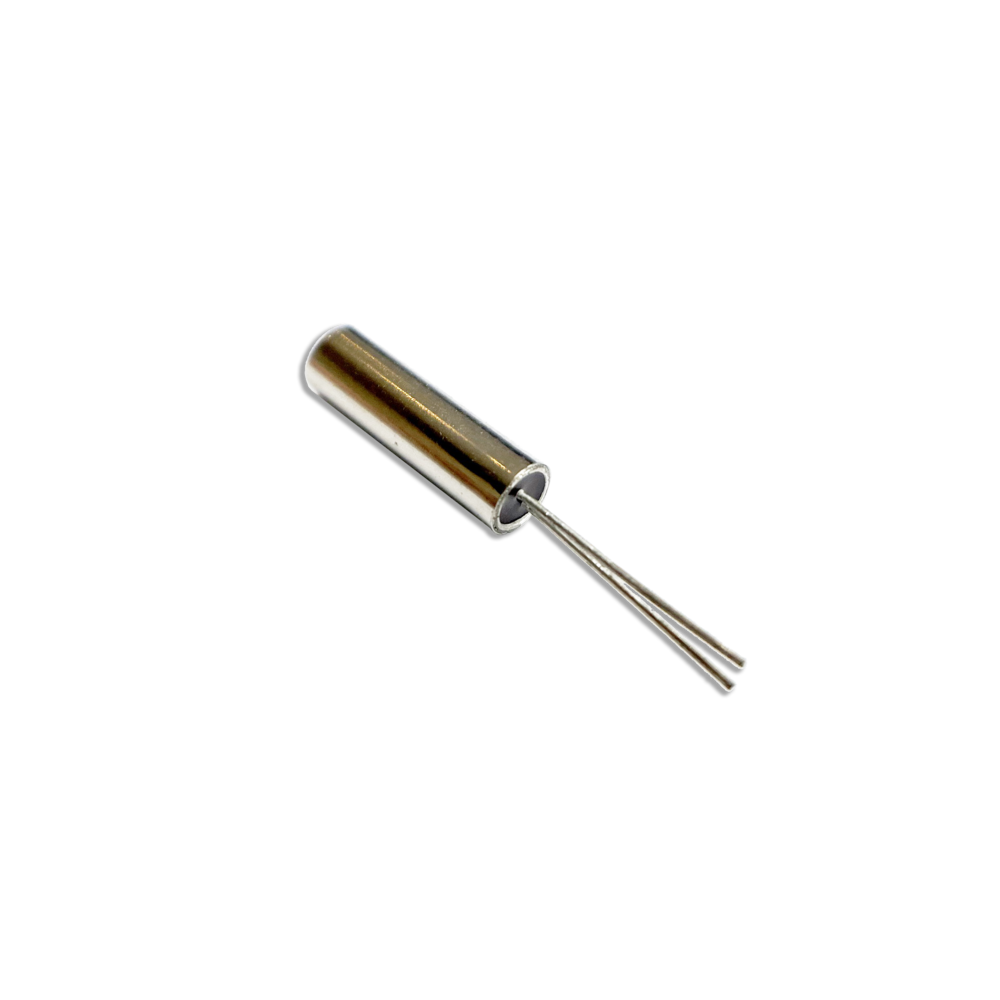

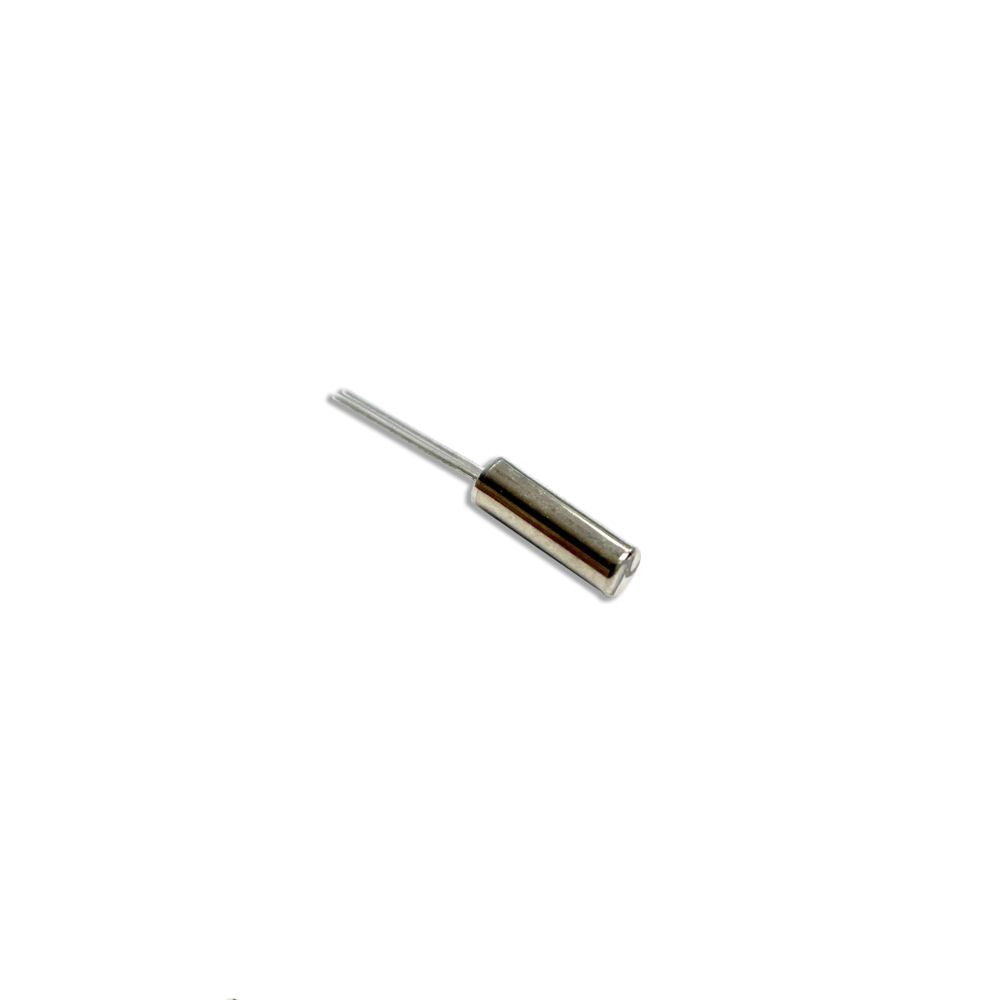

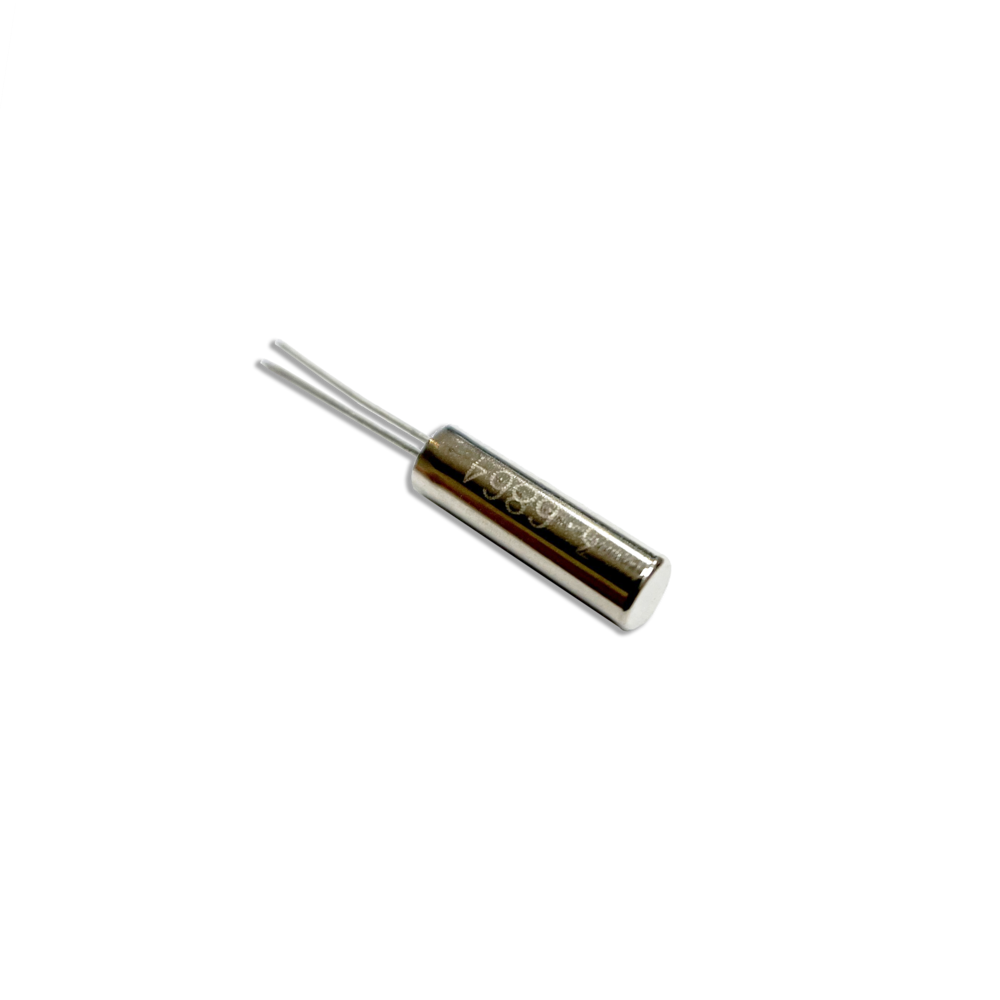

MHz Cylinder Dip Crystal AGX-T26M, AGX-T38M,AGX-T39M,AGX-T310M
|
Model |
AGX-T26M |
AGX-T38M /T39M / T310M |
|
Frequency Range |
12~27.0 MHz |
4.0~50.0 MHz |
|
Mode of Oscillation |
AT-cut / Fundamental (4.0 ~ 30.0 MHz |
|
|
Frequency Tolerance at +25 ºC |
AT-cut: ±30ppm at 25 ºC |
|
|
Frequency Stability |
AT-cut: ±50ppm over -10 ~ +70 ºC |
|
|
Shunt Capacitance (C0) |
5pF Max. |
|
|
Load Capacitance (CL) |
16 pF Typ. (Please specify) |
|
|
Drive Level |
10 ~ 100 µW |
|
|
Operating Temperature Range |
-10 ~ +70 ºC |
|
|
Storage Temperature Range |
-40 ~ +85 ºC |
|
|
Aging |
Less than ±3 ppm/year. (At 25 ±5ºC) |
|
Euqivalent Series Resistance (ESR)
AGX-T26M
|
Frequency |
ESR |
Oscillation Mode |
|
12~27.0 MHz |
60 Ω Max. |
Fundamental |
AGX-T38M /T39M / T310M
|
Frequency |
ESR |
Oscillation Mode |
|
4.0~5.9 MHz |
150 Ω Max. |
Fundamental |
|
6.0~9.9 MHz |
100 Ω Max. |
Fundamental |
|
10.0~30.0 MHz |
60 Ω Max. |
Fundamental |
|
30.1~50.0 MHz |
100 Ω Max. |
3rd Overtone |

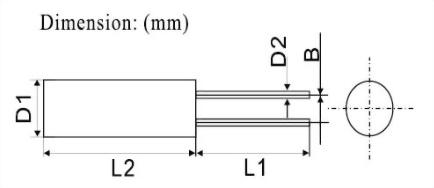

Dimension: (mm)
|
Mode |
L1 |
L2 |
D1 |
D2 |
B |
|
AGX-T26M |
7.5 Max. |
6.4 ±0.2 |
φ 2.0 ±0.2 |
φ 0.19 ±0.02 |
0.8 ±0.2 |
|
AGX-T38M |
10 Max. |
8.2±0.2 |
φ 3.0 ±0.2 |
φ 0.32 ±0.02 |
0.8 ±0.2 |
|
AGX-T39M |
10 Max. |
9.0 ±0.2 |
φ 3.0 ±0.2 |
φ 0.32 ±0.02 |
1.1 ±0.2 |
|
AGX-T310M |
10 Max. |
10.0±0.2 |
φ 3.0 ±0.2 |
φ 0.32 ±0.02 |
1.1 ±0.2 |
