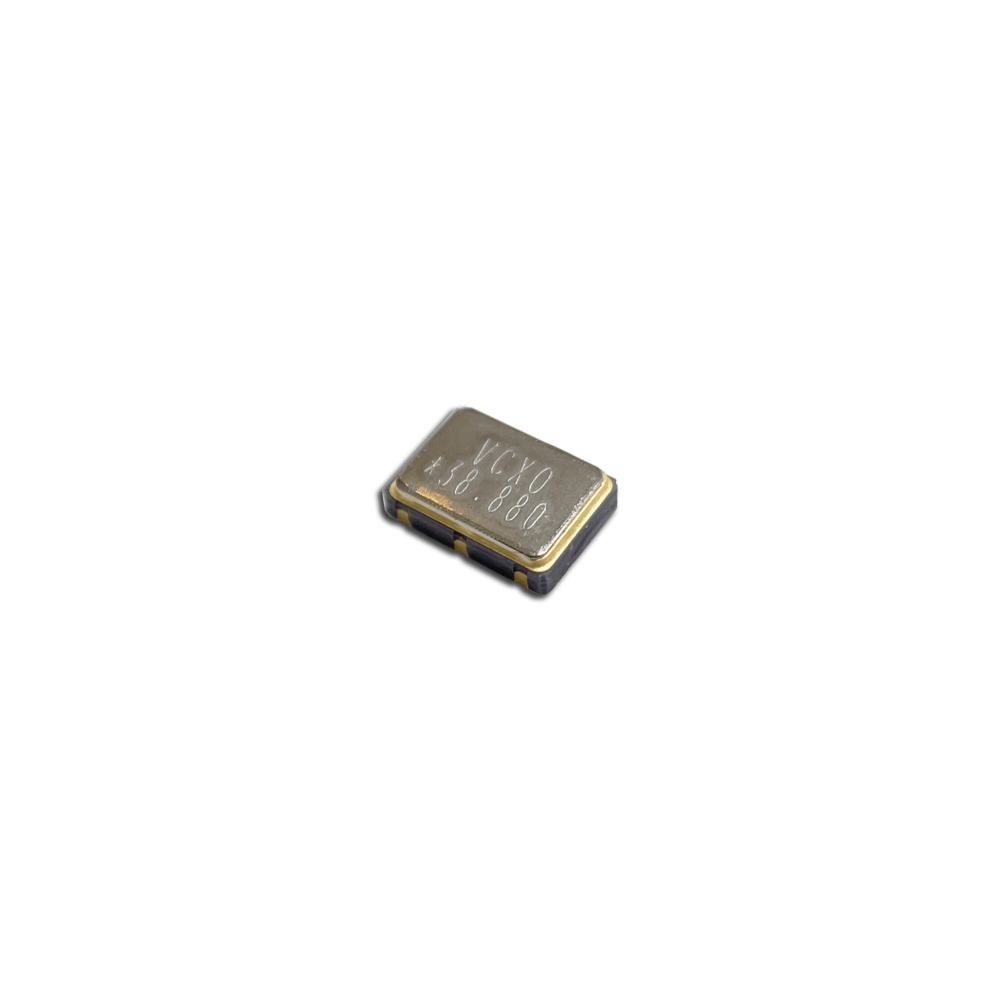

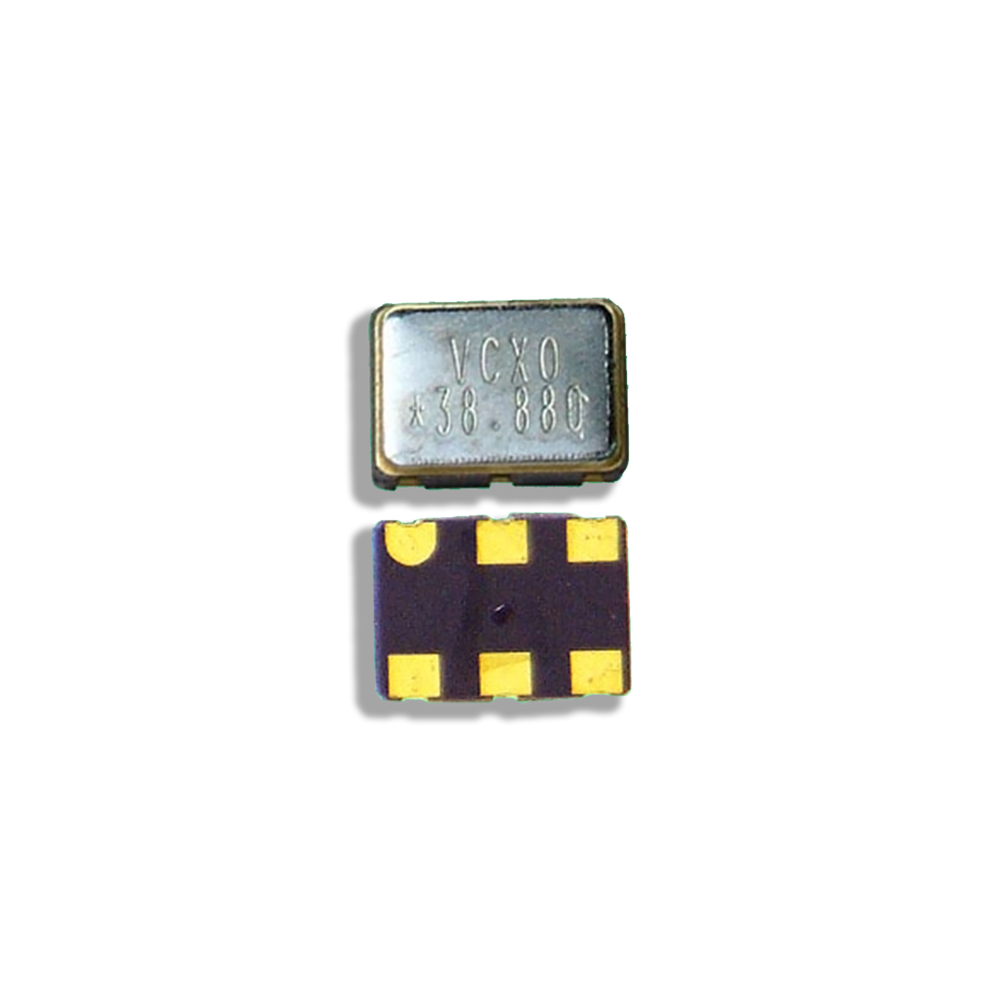

SMD Type VCXO AGVCO-SV7050, AGVCO-SV7050B
|
Model
|
AGVCO-SV7050
|
AGVCO-SV7050B
|
|
Frequency Range
|
500KHz~125MHz
|
|
Frequency Tolerance
|
±20ppm, ±50ppm, ±100ppm
|
|
Output Logic
|
TTL / CMOS
|
|
Power Supply Voltage
|
VDC 3V~5V
|
|
Input Voltage(VDD)
|
VDD 3.3V DC
|
VDD 5.0V DC
|
|
Output Voltage HIGH"1"
|
TTL
|
2.4V min.
|
2.4V min.
|
|
CMOS
|
2.97V min.
|
4.5V min.
|
|
Output Voltage LOW"0"
|
TTL
|
0.4V min.
|
0.4V max.
|
|
CMOS
|
0.33V min.
|
0.5V max.
|
|
Frequency Pulling Range
|
From ± 30ppm to ±150ppm Control Voltage:0.3 to 3.0
|
From ± 80ppm to ±200ppm Control Voltage:0.5 to 4.5
|
|
Current Consumption
|
15~45mA(frequency dependent)
|
|
Operating Temperature Range
|
0 to +70 ºC
|
|
Storage Temperature Range
|
-40 to +85 ºC
|
|
Aging
|
Less than ±5 ppm/year. (At 25±5 ºC)
|
|
