SMD Oscillator是当今产业界中最广泛使用的，可应用在不同产品中，从Super I/O到100G高速网路都可支援；另外SMD Oscillator有着最完整的输出接口与频率范围，让使用者在设计电路时，可以更容易符合IC对Oscillator的要求。

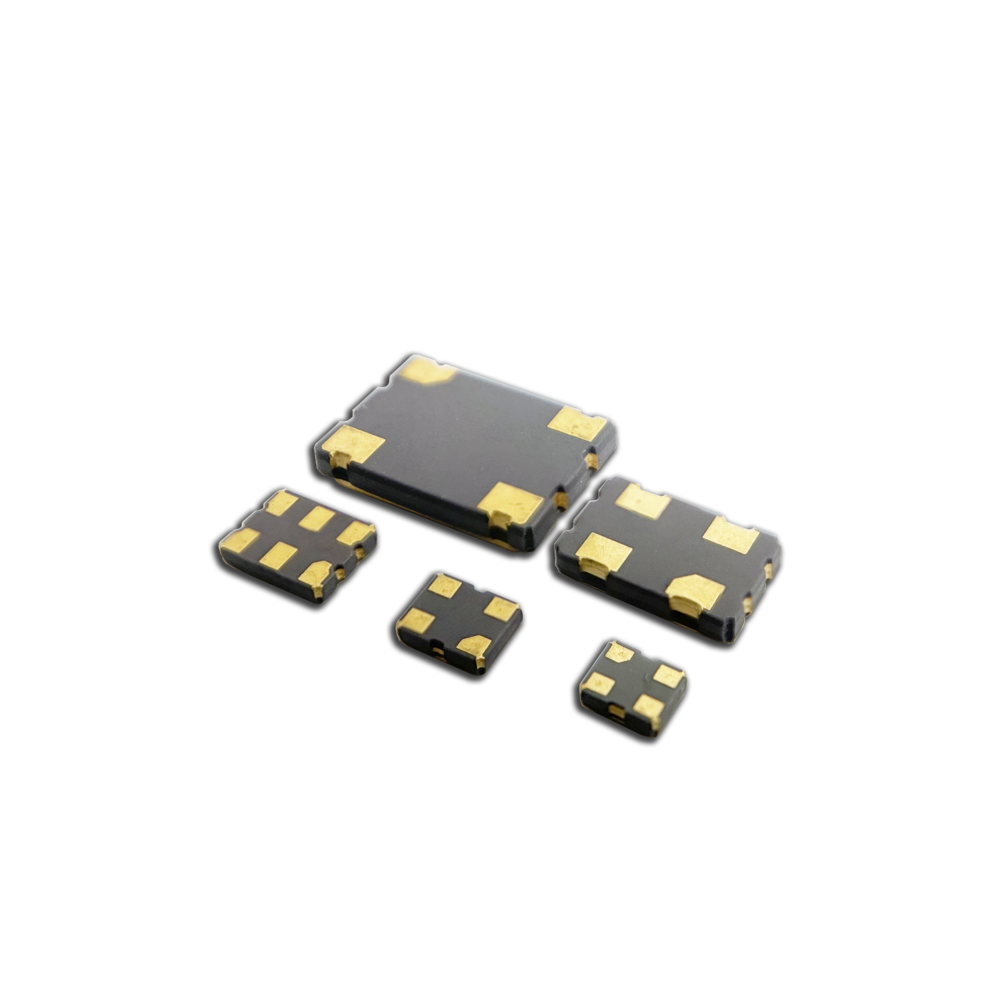

SMD Crystal Oscillators

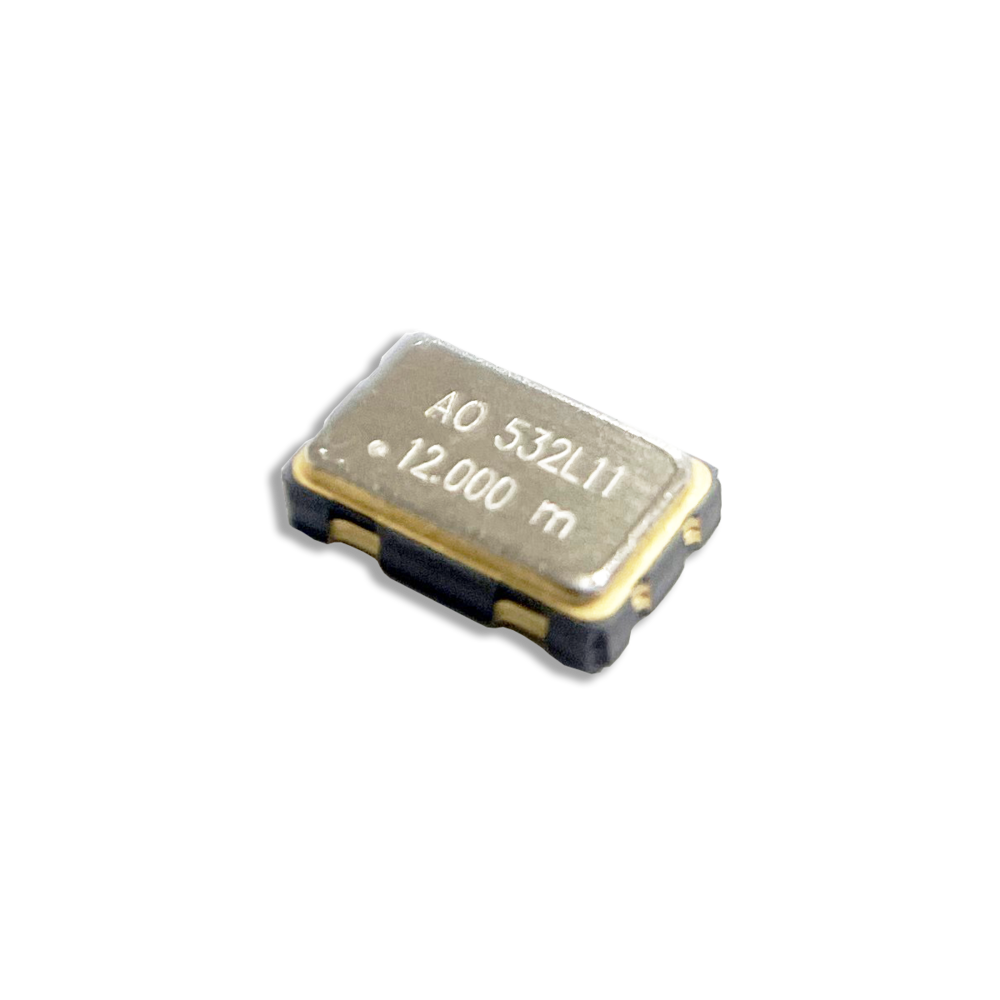

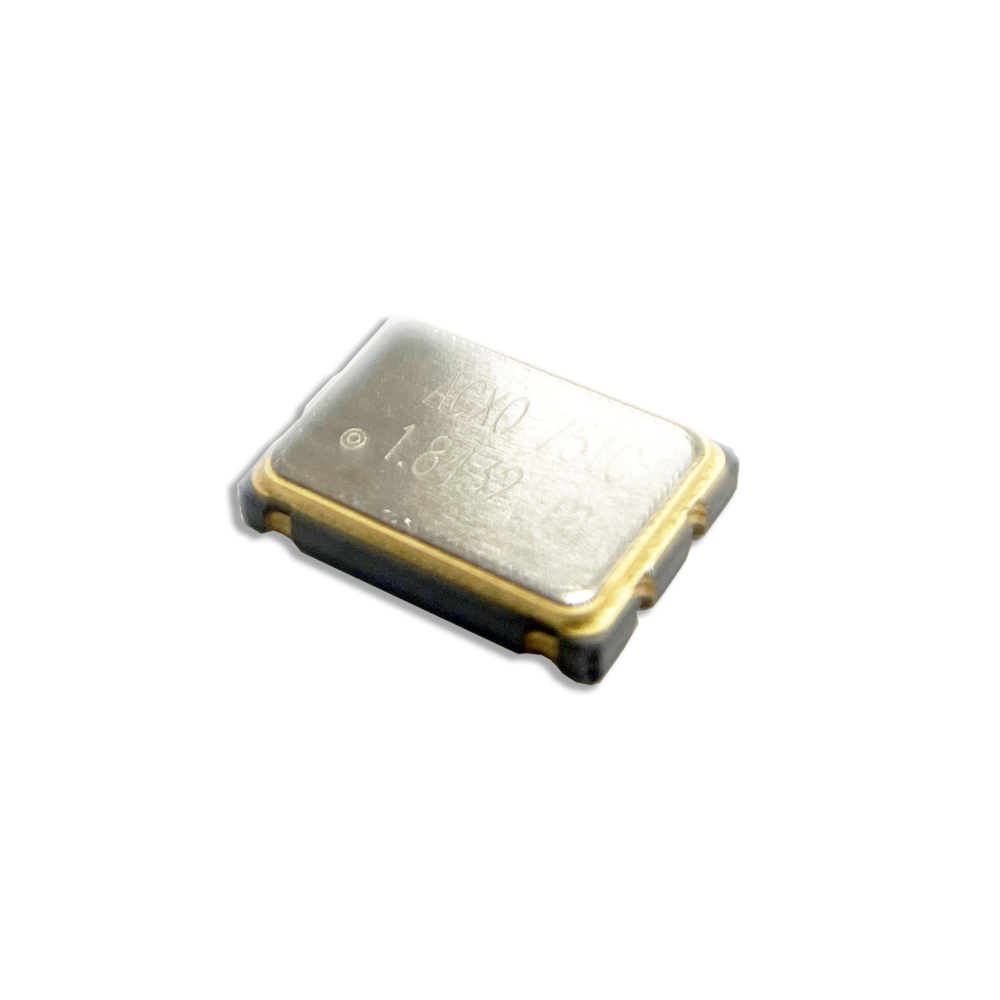

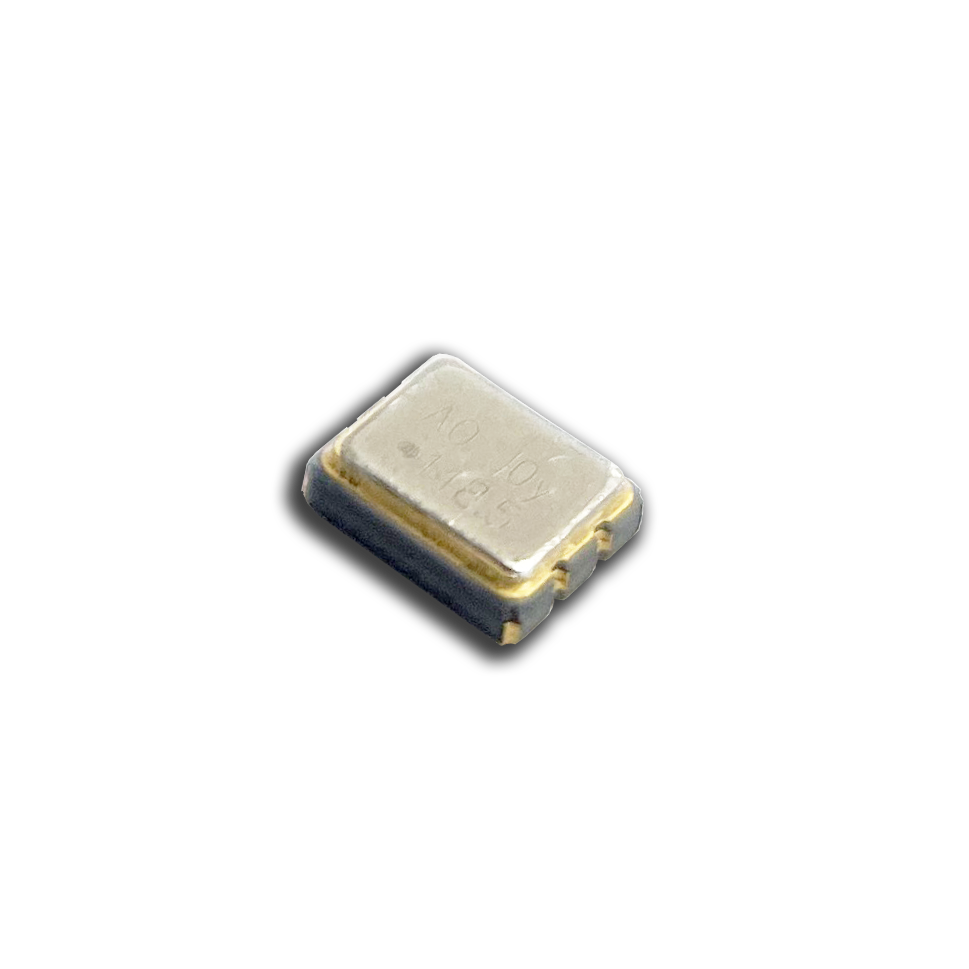

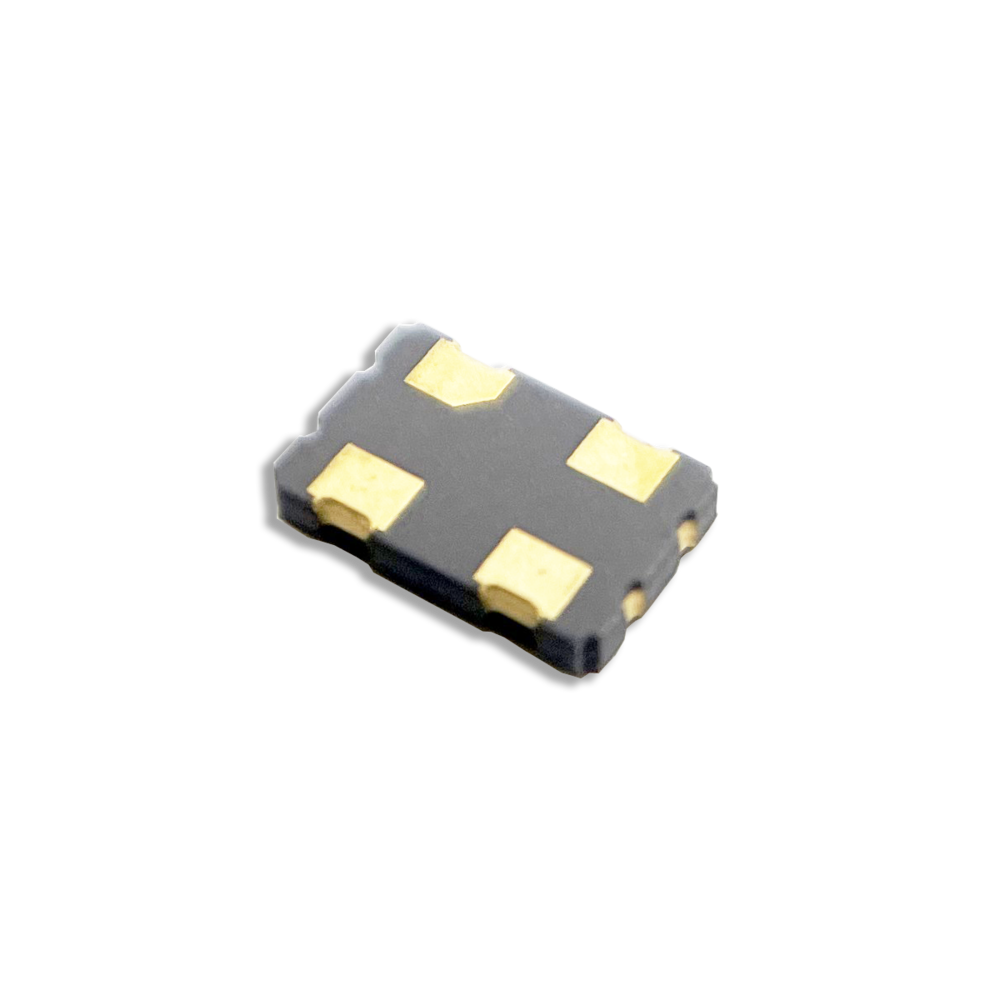

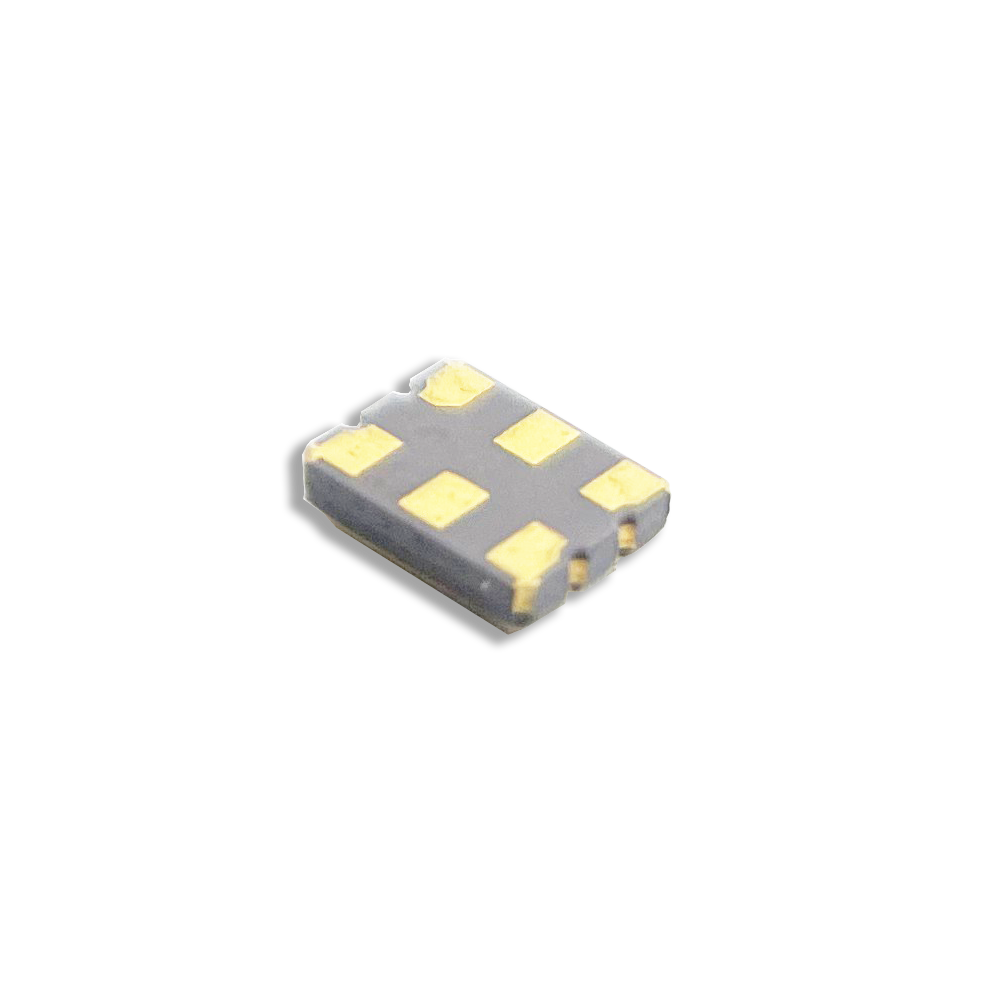

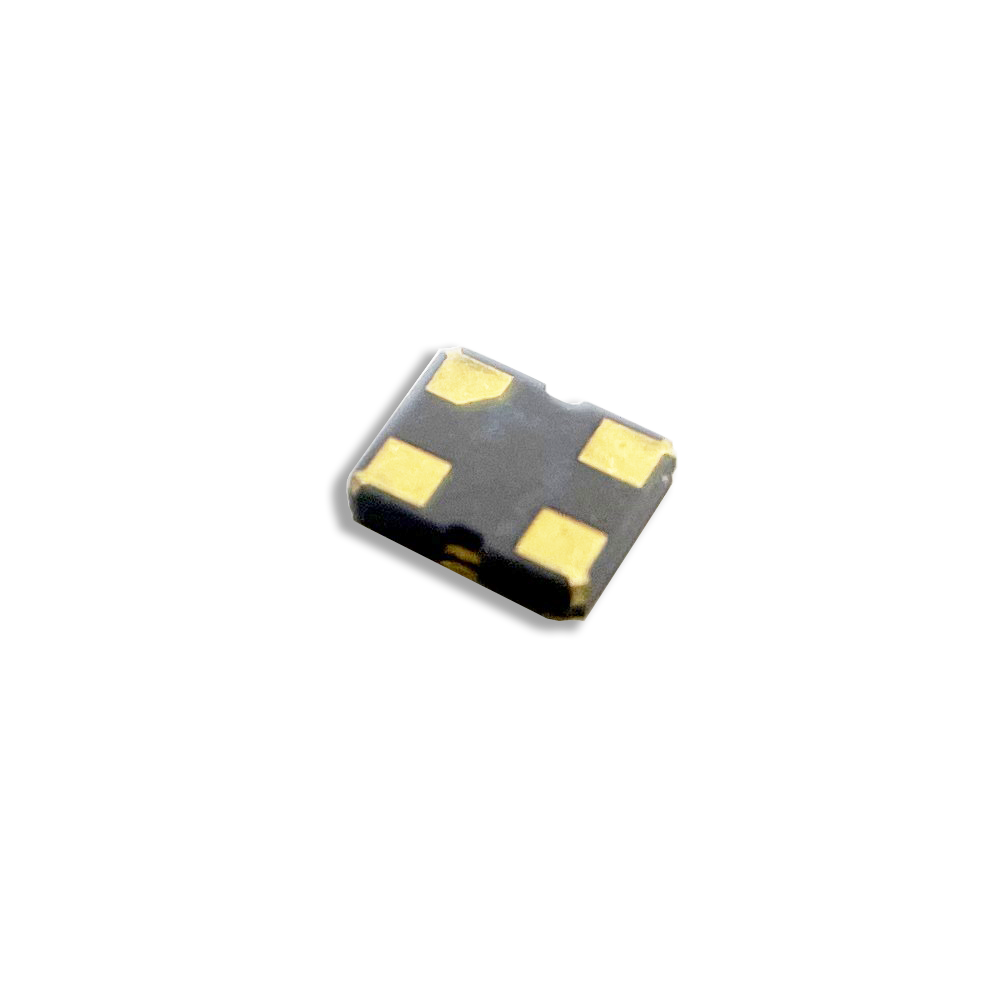

AGXO-S7050, AGXO-S5032, AGXO-S3225, AGX0-S2520, AGX0-S2016
|
Model |
AGXO-S7050, AGXO-S5032, |
||
|
Frequency Range |
1MHz~150MHz |
||
|
Frequency Tolerance |
± 20ppm, ± 50ppm, ± 100ppm( ± 5ppm) |
||
|
Output Logic |
TTL / CMOS |
||
|
Power Supply Voltage |
VDC 3V~5V or 2.8V |
||
| Input Voltage(VDD) |
VDD 3.3V DC |
VDD 5.0V DC |
|
|
Output Voltage HIGH"1" |
TTL |
2.4V min. |
2.4V min. |
|
CMOS |
2.97V min. |
4.5V min. |
|
|
Output Voltage LOW"0" |
TTL |
0.4V min. |
0.4V max. |
|
CMOS |
0.33V min. |
0.5V max. |
|
|
Current Consumption |
15~45mA(frequency dependent) |
||
|
Operating Temperature Range |
0 to +70 ºC |
||
|
Storage Temperature Range |
-40 to +85 ºC |
||
|
Aging |
Less than ± 5 ppm/year. (At 25 ± 5 ºC ) |
||
Dimension: (mm)
AGXO-S7050

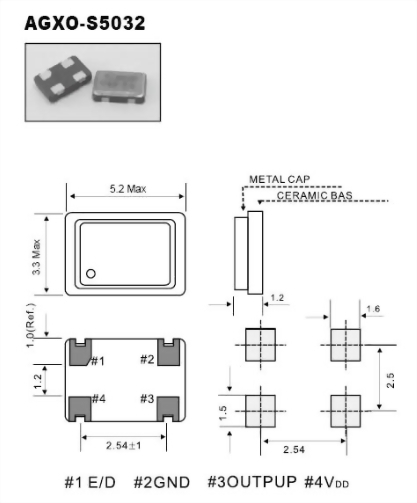

AGXO-S5032

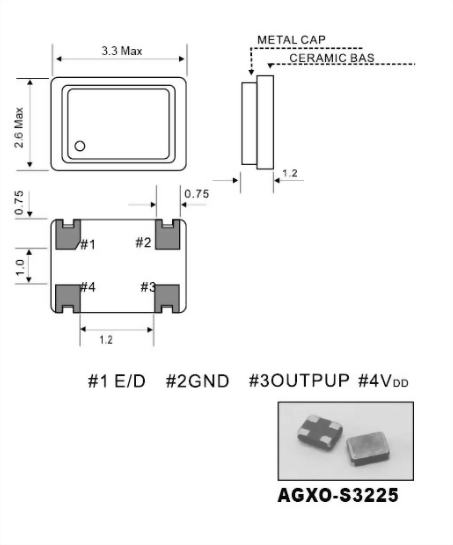

AGXO-S3225

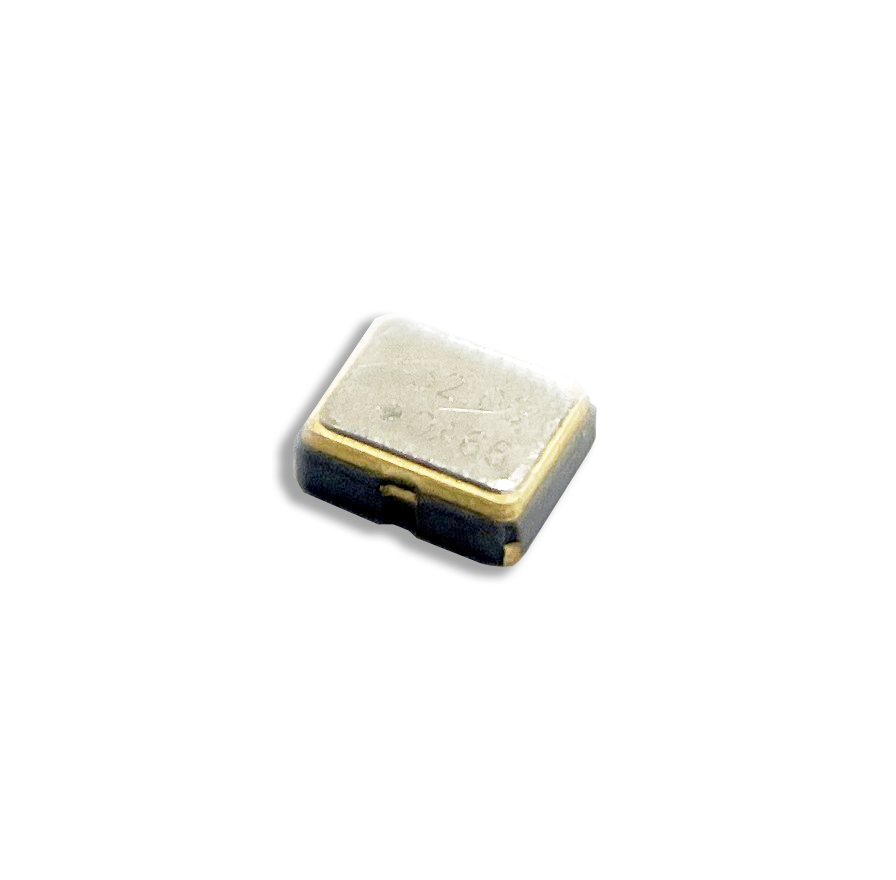

AGXO-S2520

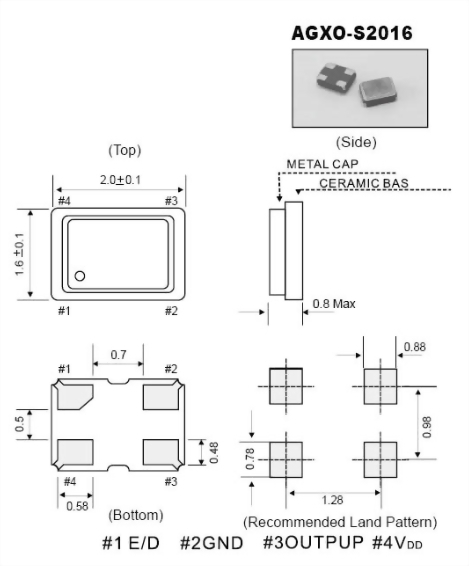

AGXO-S2016
