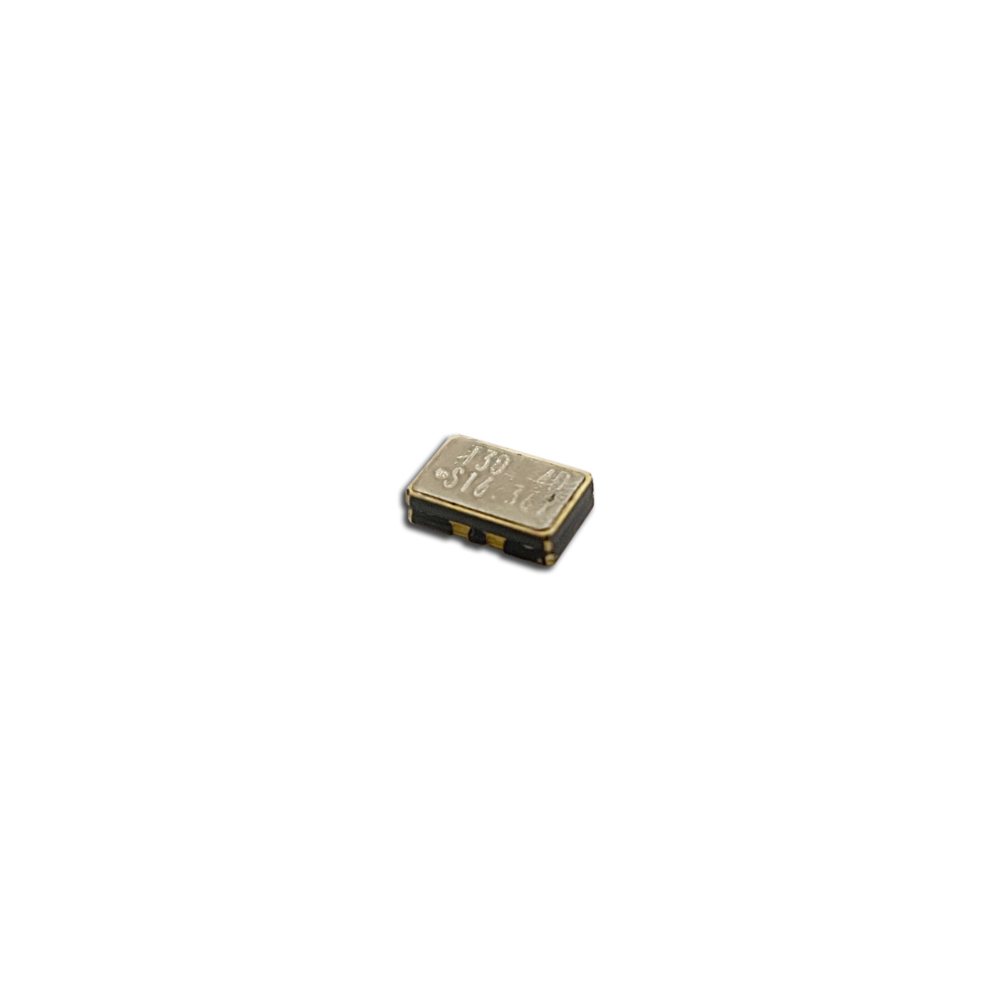

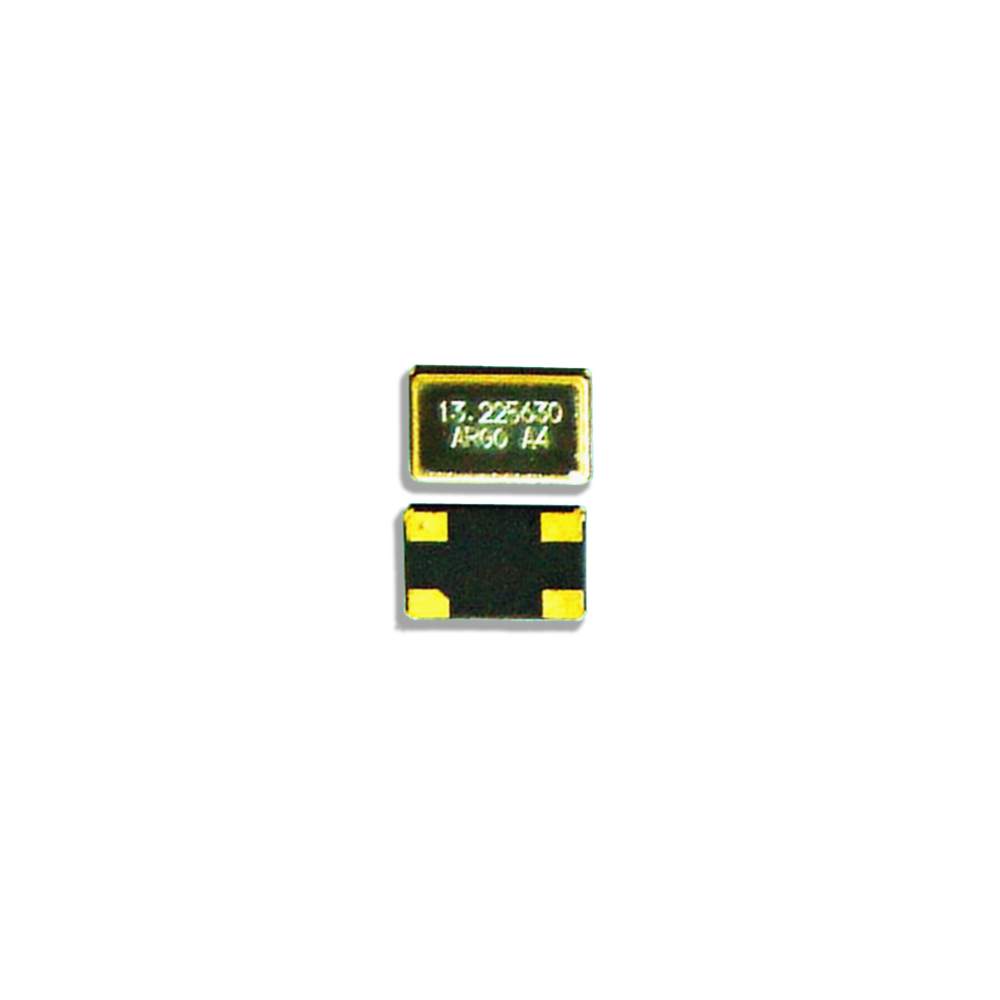

SMD TCXO/VCTCXO

在大部分的无线传输设计中,都需要有一个输出稳定的频率元件,也就是TCXO。TCXO可以将频率精准度控制在低于0.5ppm,其可确保资料传输时不会因频偏导致掉封包;而TCXO有一个最大的优点,就是当外部环温变化时,其位于TCXO内部的IC可以补偿来自温度变化的频偏,将其补正回常温25度的精准频率。而VC-TCXO的则是在TCXO的PIN 1脚加上了VC脚位,就可以同时拥有VCXO的功能。

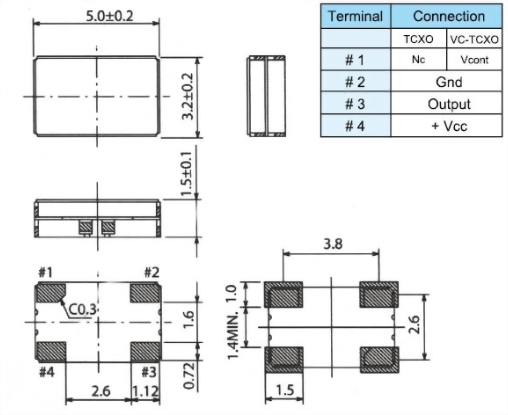

SMD Type TCXO/VCTCXO
   AGTCO-ST5032,    AGVCTCO-ST5032
   AGTCO-SVT5032,  AGVCTCO-SVT5032

Model

ST5032

SVT5032

Nominal Frequency Range

10.000-36.000 MHz

Standard Frequency

13.000, 14.400, 19.200 , 19.680, 26, 00MHz

Frequency Stability

Tolerance (@25ºC)

± 0.5ppm Max.

Temperature

±1.0 ppm (0ºC~ +50ºC), ±2.5 ppm (-30ºC ~ +85ºC)

Supply Voltage

±0.2ppm(Vcc ±5%)

Aging(+25ºC)

±1.0 ppm /year Max.

Temperature Range

Operating

0ºC ~ +50ºC, -30ºC ~ +85ºC

Storage

-40ºC ~ +85ºC

Power Supply Voltage(VDC)

+2.7V ~ +5.0V(±5%)

Current Consumption

2mA Max.(Load)

Output

Load

10K Ω /10pF

Level

0.8Vp-p Min.

Waveform

Clipped Sine Wave

Phase Noise (@ 1.0 kHz) [dBc/Hz]**

-130 dBc/Hz Typ.(@ l.0kHz)**

External Control Function

Freq. Tunning Range

-

±8.0ppm Min.(Positive)

Ext. Control Voltage



+1.5V ±1.0V

Please consult with our sales department for other parameters.

*Do not clean this TCXO by ultrasonic-wave or liquid.

**Performances vary based on different specification.
