DIP Oscillator是目前Oscillator产品线中最早问世的，其仍存在于众多无法改版的老旧机板上，或是有绑定设计的大型工具机台的主板中，此旧型的板件设计已逐渐地被市场淘汰，大多都已向更小尺寸的SMD Oscillator规划设计。

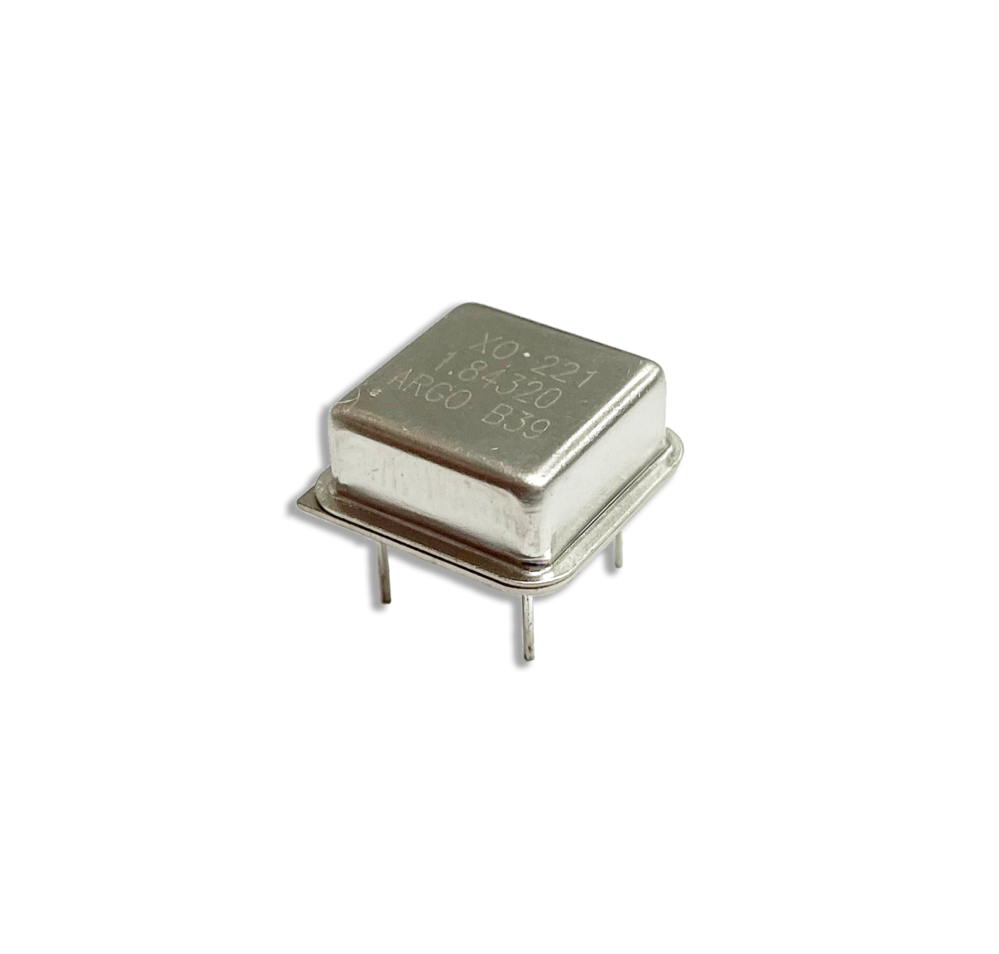

DIP Type Crystal Oscillators AGXO-T8, AGXO-T14
|
Model |
AGXO-T8 |
AGXO-T14 |
|
|
Frequency Range |
20kHz~125 MHz |
||
|
Frequency Tolerance |
±20ppm, ± 50ppm, ± 100ppm |
||
|
Output Logic |
TTL / CMOS |
||
|
Power Supply Voltage |
VDC 3V~5V or 2.8V |
||
| Input Voltage(VDD) |
VDD 3.3V DC |
VDD 5.0V DC |
|
|
Output Voltage HIGH"1" |
TTL |
2.4V min. |
2.4V min. |
|
CMOS |
2.97V min. |
4.5V min. |
|
|
Output Voltage LOW"0" |
TTL |
0.4V min. |
0.4V max. |
|
CMOS |
0.33V min. |
0.5V max. |
|
|
Current Consumption |
15~45mA(frequency dependent) |
||
|
Operating Temperature Range |
0 to +70 ºC |
||
|
Storage Temperature Range |
-40 to +85 ºC |
||
|
Aging |
Less than ±5 ppm/year. (At 25 ±5 ºC) |
||

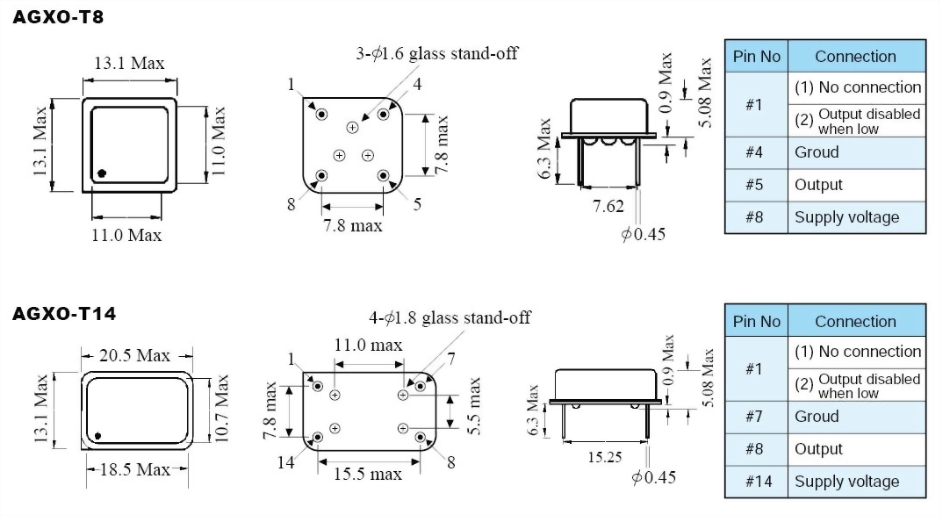

Dimension: (mm)
AGXO-T8
AGXO-T14
