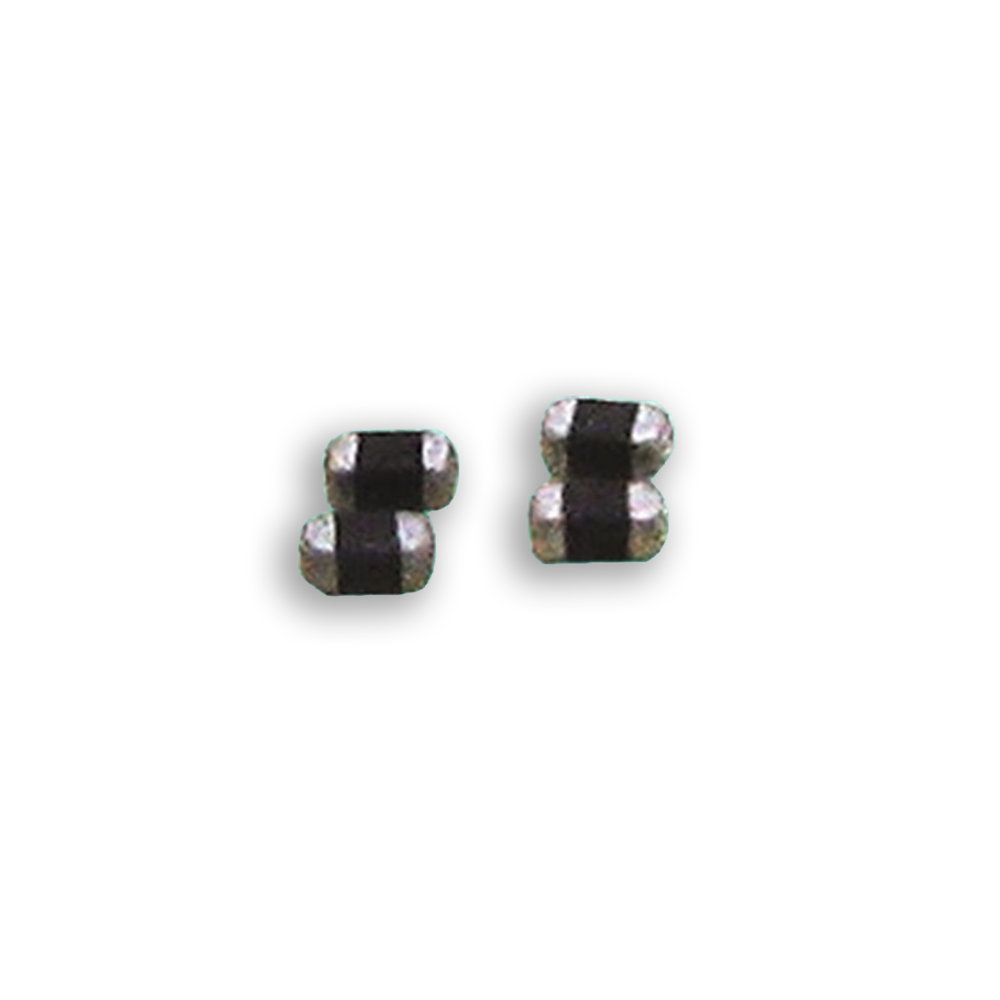

低电容 ESD 压敏电阻 AVLC 系列

AVLC系列ESD压敏电阻是在低电容情况下通常用作电路上的非导体的组件。加载过压后,它成为一种导体,可以在临界电压水平下将过电流接地。

AVLC Series (ESD Varistor - Law Capacitance)

Characteristic:

  • For ESD
  • Working voltage: 5V to 18V
  • Fast response time (<1ns)
  • ESD protection (>30KV)
  • Small size
  • Meets IEC 61000-4-2 (ESD) Level 4 & IEC 61000-4-4(EFT) Level 4 Requirements
  • Low capacitance for high frequency data line protection
  • Available in tape and reel for automatic pick and place

Size:

  • 0.6 x 0.3 mm (0201)
  • 1.0 x 0.5 mm (0402)
  • 1.6 x 0.8 mm (0603)
