AVL 系列 (High Power ESD Varistor)

AVL系列ESD压敏电阻是一种在正常情况下充当电路非导体的组件。加载过压后,它成为一种导体,可以在临界电压水平下将过电流从电路转移到接地。

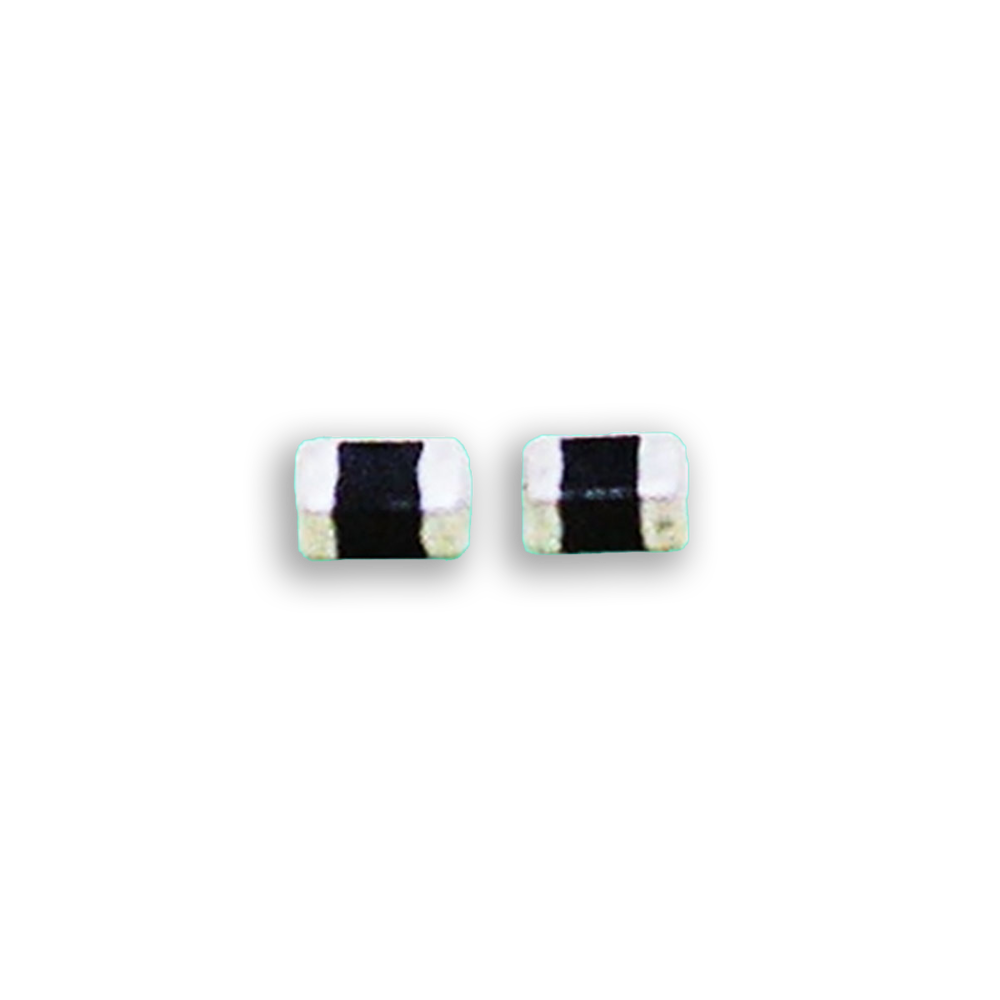

AVL Series (High Power ESD Varistor)

Characteristics:

  • For ESD
  • Working voltage: 3V to 56V
  • Fast response time (<1ns)
  • ESD protection (>30KV)
  • Small size
  • Multi-layer construction technology
  • Bi-directional camping and low clamping voltage
  • No plastic coating guarantees better flammability rating
  • Low leakage current after soldering max 20 µA at VDC

Size:

  • 1.0 x 0.5 mm (0402)
  • 1.6 x 0.8 mm (0603)
  •  2.0 x 1.25 mm (0805)
