Real Time Clock Modules

EPSON RTC Module可支援SPI或是I2C两种传输接口,并能完全取代市面上RTC IC加上32kHz Crystal的组合线路,且RTC Module的功能也非常完整,除了基本的计时外,还可以使用Alarm、Event、Interrupt等输出/入功能来当额外的GPIO使用;而EPSON的RTC Module也内建了温度补偿、电源切换等相当便利的功能,前者能确保时间不受温度变动时而偏差,后者则能协助客人在设计RTC线路时不用再额外设计电源切换线路,可谓既方便又省事。

EPSON RTC

RX8111CE:

3.2*2.5mm size. Lowest current consumption. Built-in power switching function.

RX8804CE:

3.2*2.5mm size. Supporting -40°C~+105°C Temperature compensated. Built-in time stamp function.

RX8130CE:

3.2*2.5mm size. Most popular RTC module. Built-in power switching function.

RX8900SA:

SOP14 package, supporting -40°C~+85°C Temperature compensated. Built-in power switching function.

RX8900CE:

3.2*2.5mm size. supporting -40°C~+85°C Temperature compensated. Built-in power switching function.

RX8803SA:

SOP14 package. The lowest cost of temperature compensated (-40°C~+85°C) RTC module.

相关产品

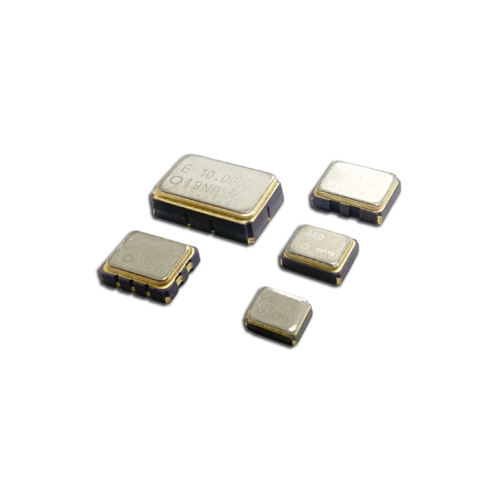

VCXO/TCXO/VCTCXO

VCXO/TCXO/VCTCXO

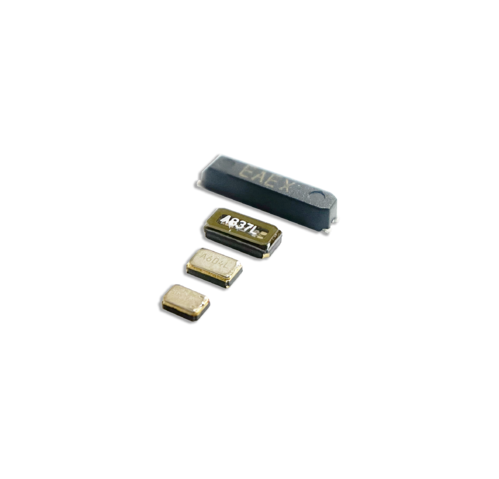

kHz Crystal

kHz Crystal

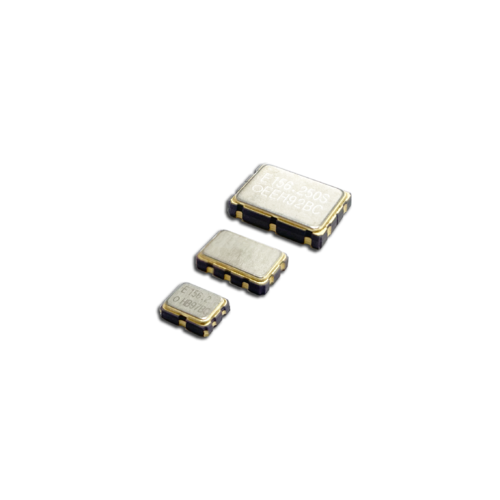

SPXO

SPXO

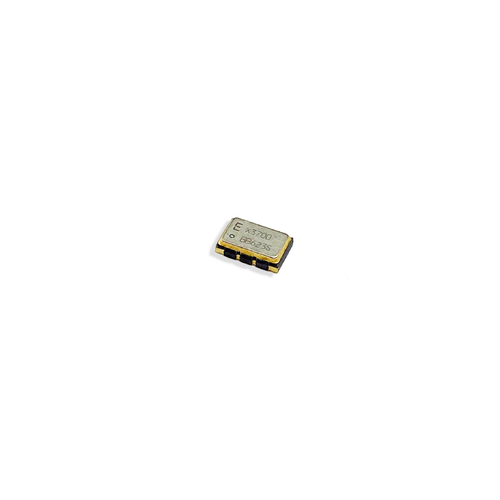

Gyro Sensors

Gyro Sensors

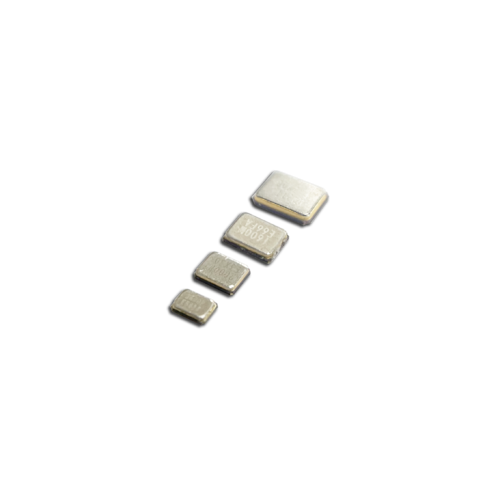

MHz Crystal
