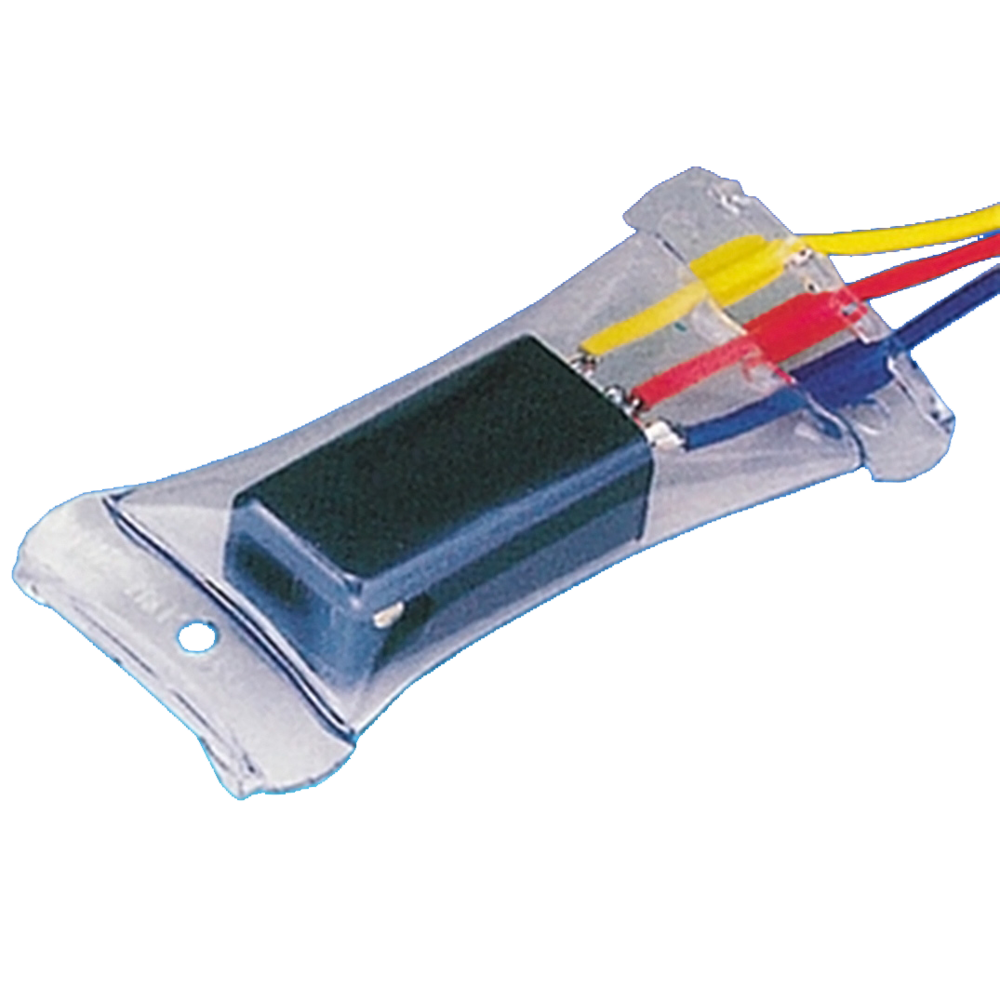

MQT5S

产品特色:
1. 具防水功能
2. 套过使用乙烯管进行双重遮罩,提高了防水性能,同时也提升了抗冲击性

MQT5S
            ---    TPS (Temperature Power Sensor Controller )
            ---    5 Amp. Series for ordinary temperature (-10 °C ~110 °C )
            ---    Life cycle 100K~100K times

Characteristics:

  • Operating voltage : AC125V, DC12V/5A, AC250V, DC24V/3A
  • Maximum operating voltage : AC250V max., DC48V max
  • Temperature setting range : - 10 °C~110 °C
  • Differential : A rank(4+/-1), B rank(4.5+/-1.5), C rank(6.5+/-1.5), D rank(10+/-2)
  • Temperature setting tolerance : +/-3 when the temperature is below 5 °C

Feature:

  • Sealed in a vinyl tube.
  • A back contact model(with 3 lead wires)is also available.
  • Size: 100 x 42 x 19 mm
