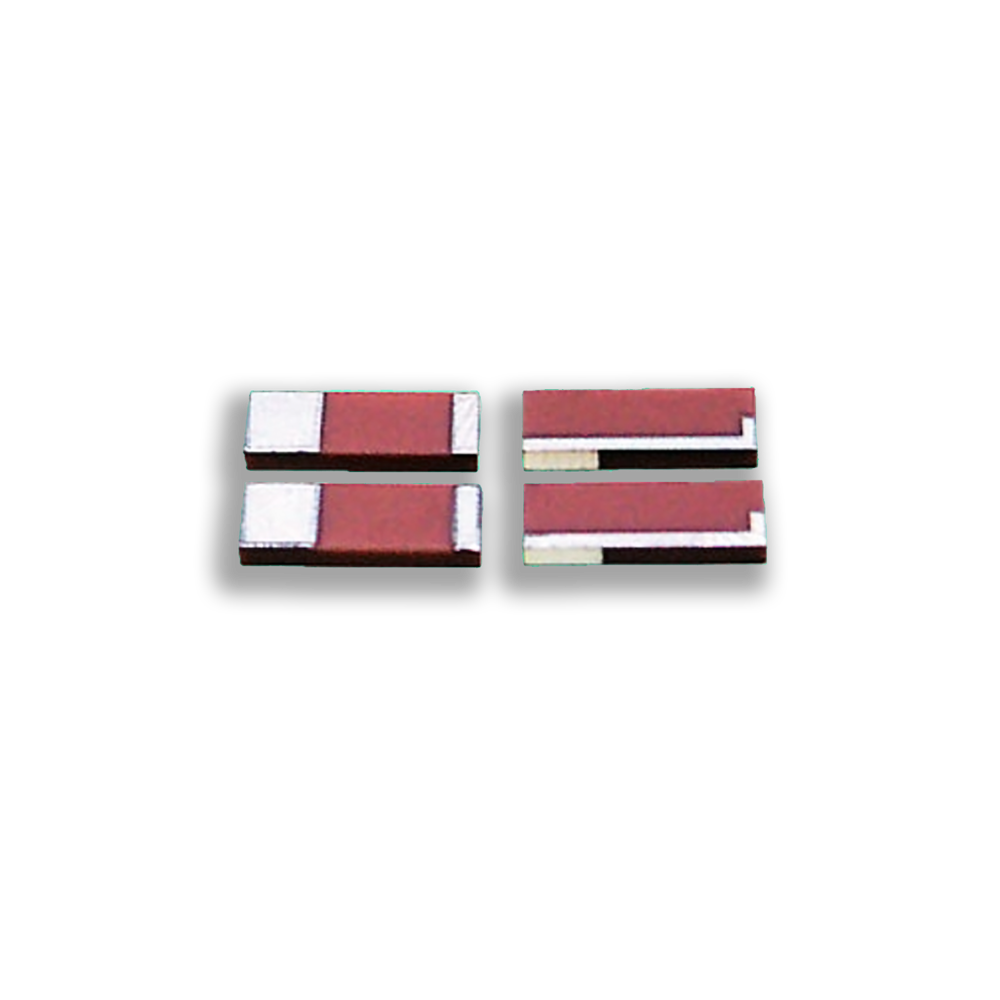

GPS Chip Antenna

GPS Chip Antenna是目前市场上另一种常见的GPS天线。尺寸较Patch天线来的小很多,约略跟贴片式电阻差不多大;此类天线因为先天尺寸较小,感度必然较差,所以需要很精细的后端线路调整;Chip Antenna尺寸上的缺陷也同时是优势,因为Chip Antenna可以放在更小的产品中,如 : GPS手表等穿戴式应用。

Chip Antenna for GPS / Bluetooth


Characteristics:

  • For GPS / Bluetooth
  • Freq:1575.42 MHz/2.4 GHz
  • Wide Bandwidth
  • Excellent Temperature Stability Application
  • Compact Size
  • Favorable Linear Polarization
  • Fully Manual and Surface Mount Computible
  • Incredibly Compact SMD Package
  • LCP Insert Molding Technology
  • Cost Effective

Size:

  • 8.0x1.0x1.7mm 1575MHz (For GPS)
  • 3.2x1.6x0.6mm 1575MHz (For GPS & Bluetooth/WiFi)
